Chapter E - C-ARM AND IMAGING ARM
E-8 ProMax X-ray unit with Dimax3
PANORAMIC BEAM AND PATIENT POSITIONING MECH-
Technical Manual
Loosen the two screws located on the attachment mechanism with the 3 mm Allen key. Adjust
the head support angle with the two screws (use 3 mm Allen key) located on the side of the
mechanism. See Fig. 14 below.

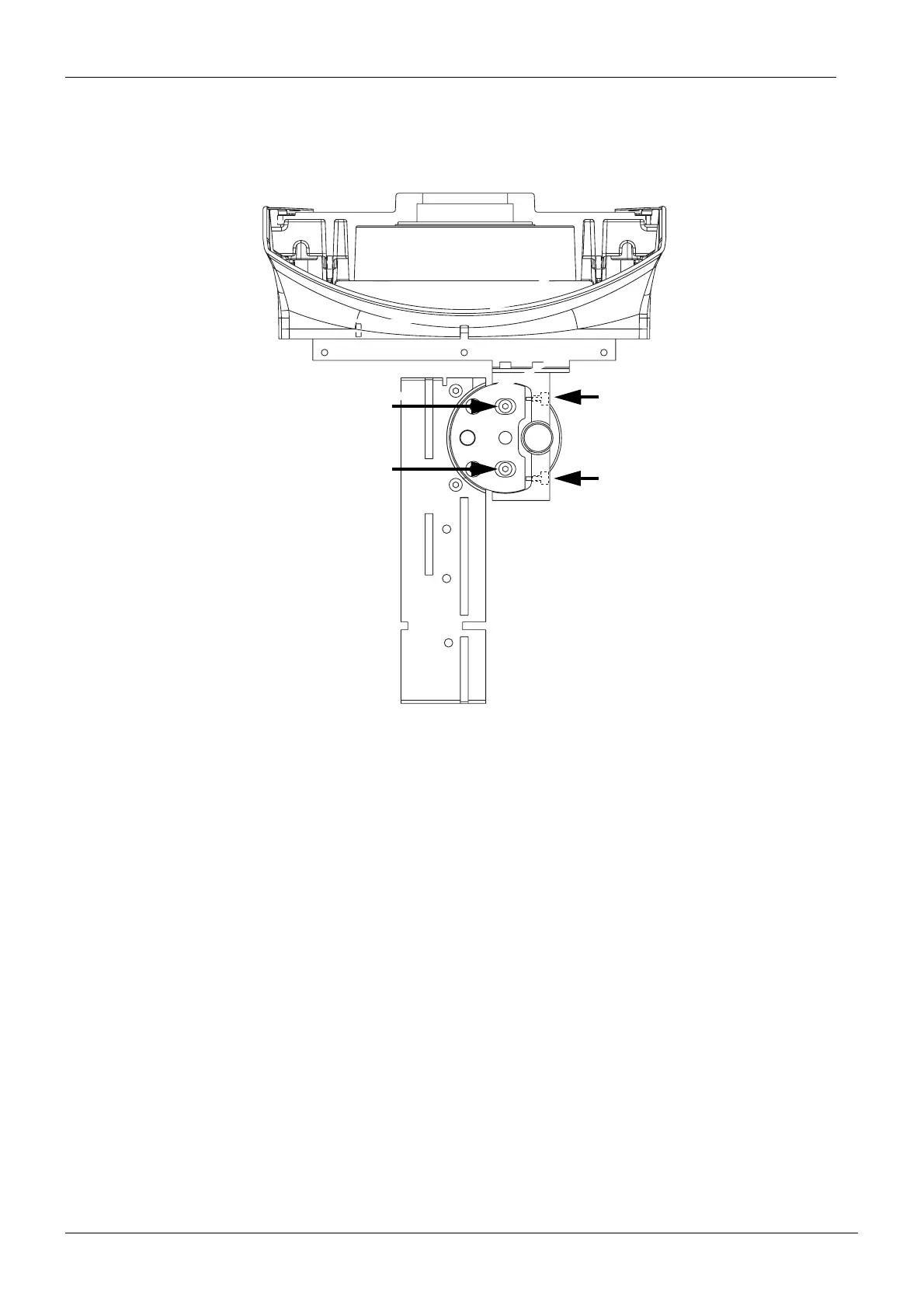

Figure 14
PXR_Adj_pan3.eps
Loosen these screws.
Adjust the head angle with
these screws.
