Chapter E - C-ARM AND IMAGING ARM
E-56 ProMax X-ray unit with Dimax3
OTHER ADJUSTMENTS AND CALIBRATIONS
Technical Manual
2 OTHER ADJUSTMENTS AND CALIBRATIONS
2.1 Calibration of angle sensors
To enter the calibration mode first touch the i-field on the
Main
display. Select Technical cali-
brations from the list on the display. The password to the Technical calibrations mode is
asked when the Technical calibrations mode is entered for the first time after switching the
unit on. The password is 1701.

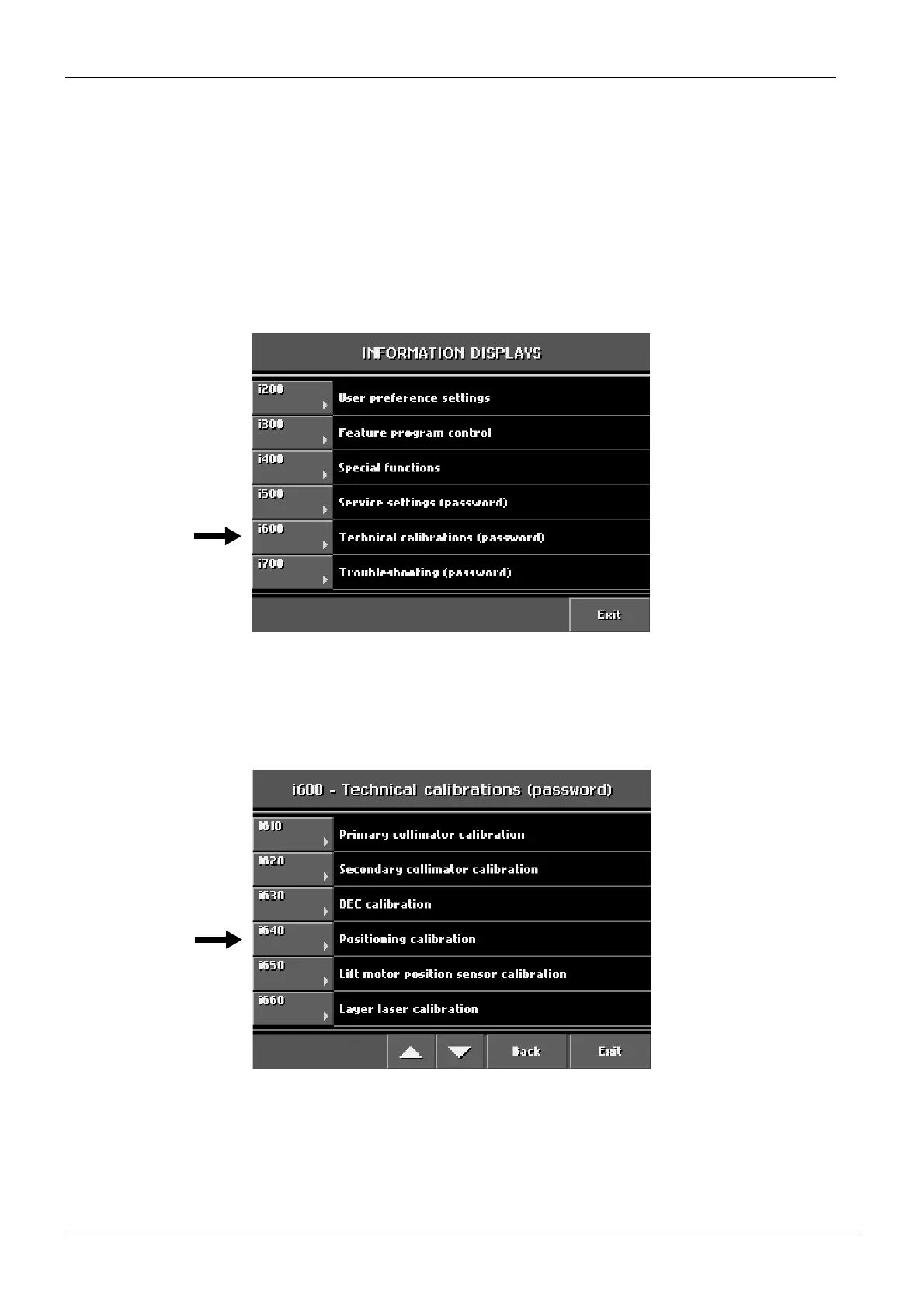

Figure 89
From the list on the
i600
display that appears select Positioning calibration (i640).
Figure 90
