Chapter E - C-ARM AND IMAGING ARM
ProMax X-ray unit with Dimax3 E-57
OTHER ADJUSTMENTS AND CALIBRATIONS
Technical Manual
From the list on the
i640
display that appears select
Position sensor calibration
(i64.1).
The display shown below appears. Drive the C-arm to the calibration position by touching the
Check field. In case all the three arm angle sensors are correctly calibrated, three empty
arrows (i.e. black) are shown on the display. In case an arrow is filled (white) the respective
angle sensor is not correctly calibrated.

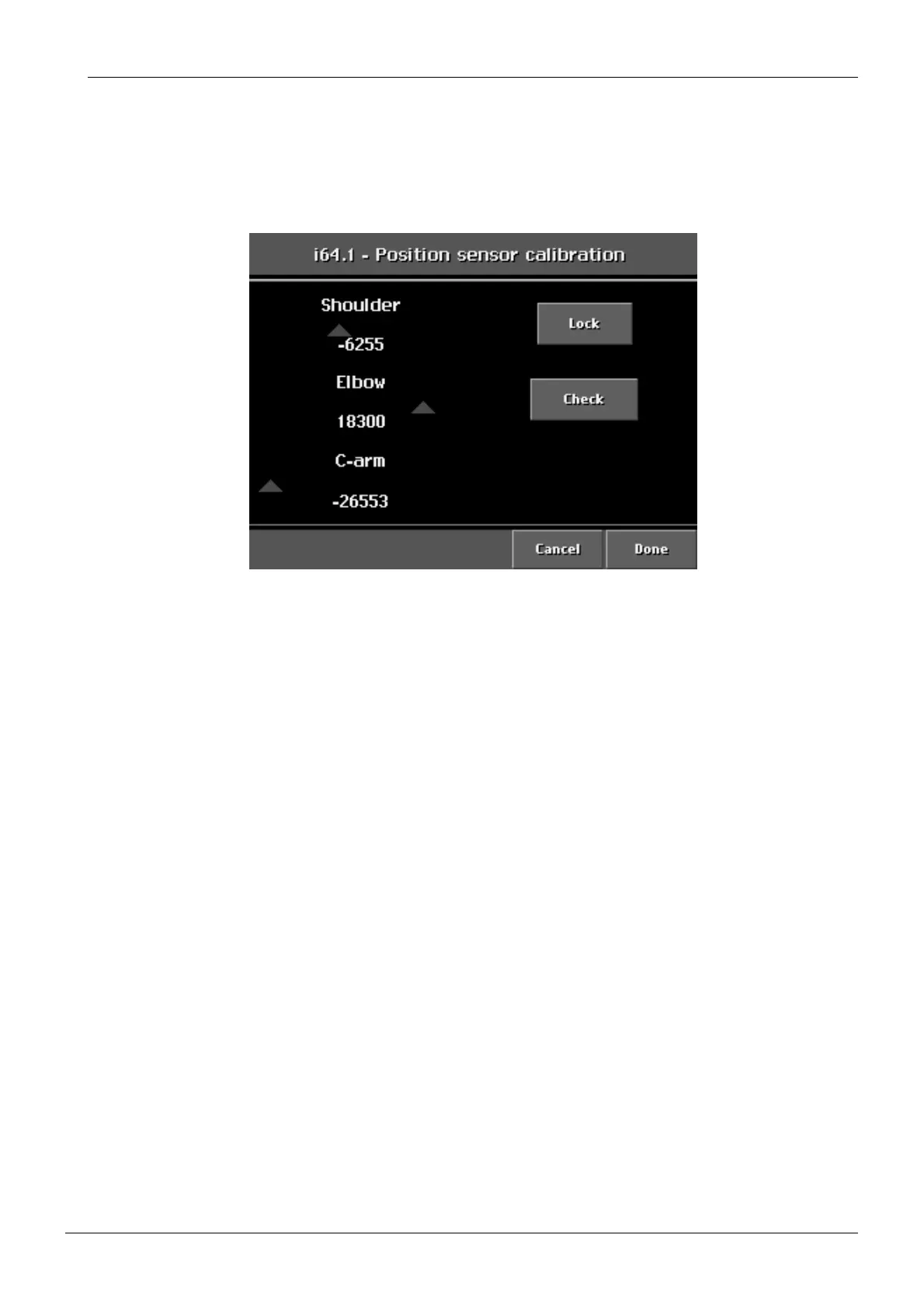

Figure 91
