Chapter E - C-ARM AND IMAGING ARM
E-58 ProMax X-ray unit with Dimax3
OTHER ADJUSTMENTS AND CALIBRATIONS
Technical Manual
Remove the shoulder arm cover. Slide the alignment pin through the hole in the shoulder joint
so that it goes into the positioning holes in the shoulder arm and column. Slide the other align-
ment pin through the hole in the elbow joint so that it goes into the positioning hole in the C-
arm. The positions of the alignment pins are shown on the Fig. 92 below.

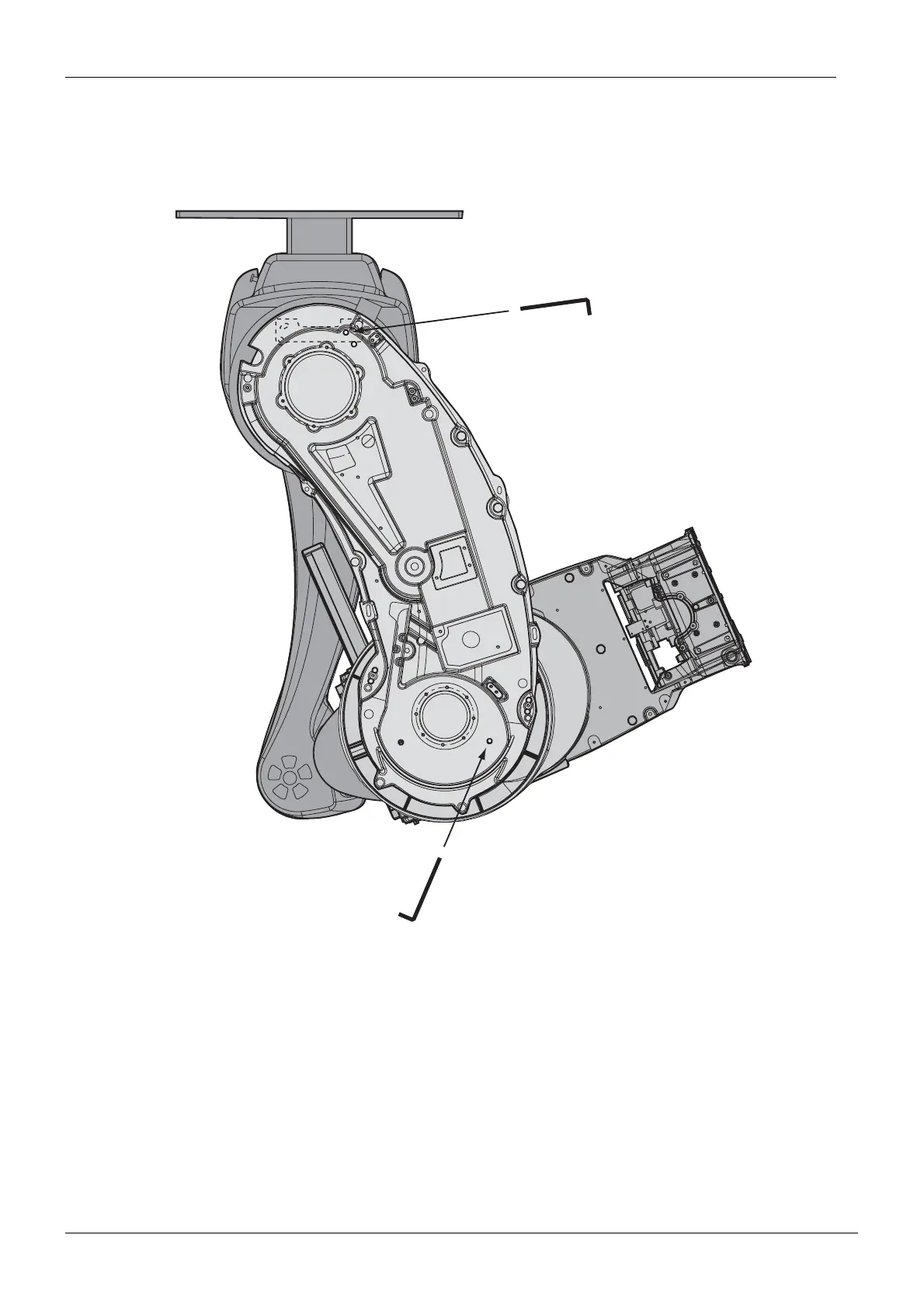

Figure 92 Positions of the alignment pins.
Pin_3.eps
Shoulder joint pin
Elbow and C-arm
joint pin
