Chapter E - C-ARM AND IMAGING ARM
ProMax X-ray unit with Dimax3 E-59
OTHER ADJUSTMENTS AND CALIBRATIONS
Technical Manual
In case the angle sensor(s) need to be adjusted, remove the inner cover of the C-arm, refer to
section 3.4 “C-arm inner cover” on page E-89.
Adjust the angle sensor axle positions according to the instructions given in sections “Shoul-
der joint angle sensor” on page E-60, “Elbow joint angle sensor” on page E-61 and “C-arm
angle sensor” on page E-62.
When there are three empty arrows on the display indicating that all the angle sensors are
correctly adjusted, lock the stepper motors by touching the Lock field. The text Release will
appear on the field. If you want to release the motors, touch the Release field. After locking
the motors remove the alignment pins and calibrate the angle sensors by touching the Done
field.

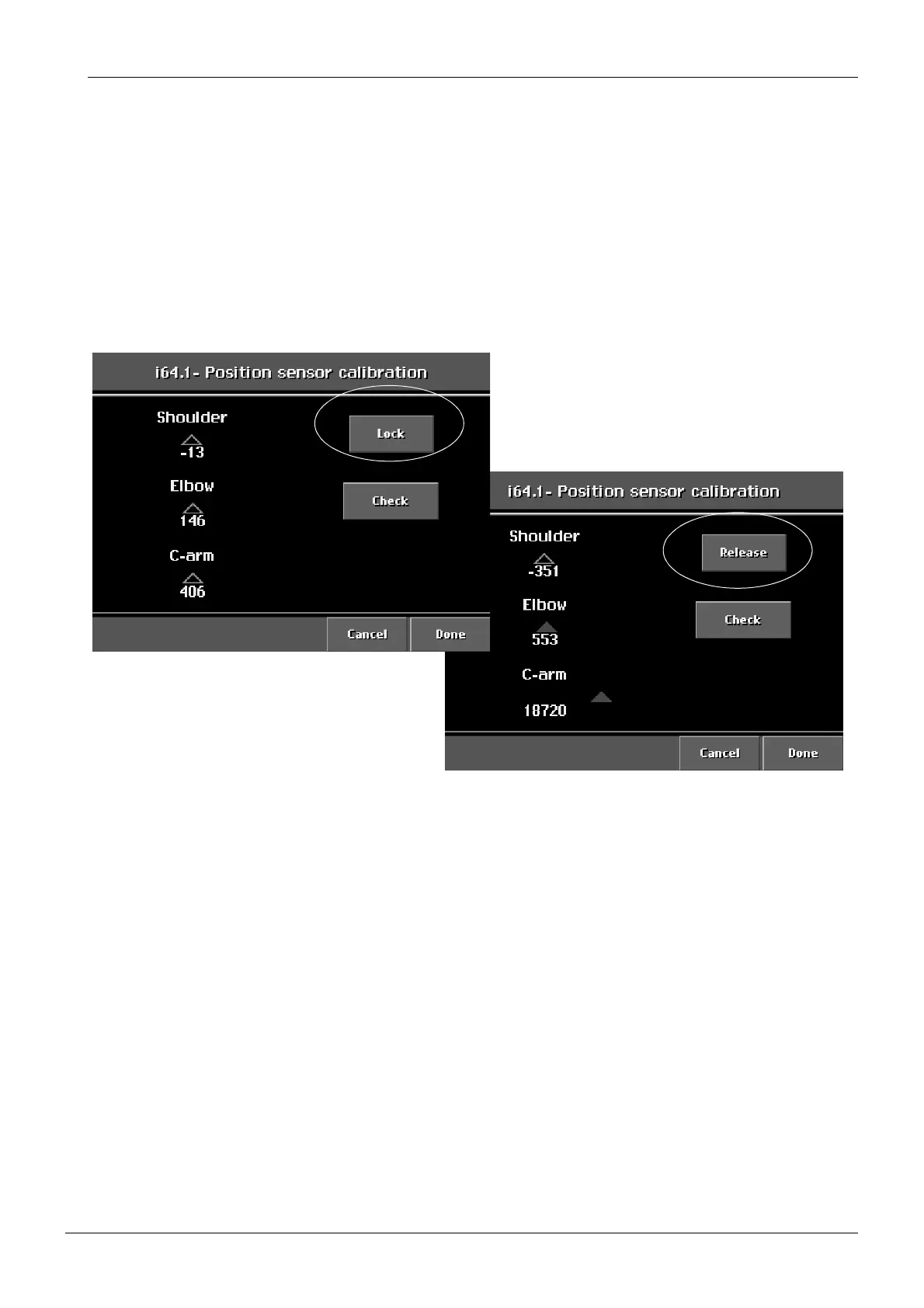

Figure 93
All the angle sensors
are correctly
calibrated.
