Chapter E - C-ARM AND IMAGING ARM
E-60 ProMax X-ray unit with Dimax3
OTHER ADJUSTMENTS AND CALIBRATIONS
Technical Manual
Shoulder joint angle sensor

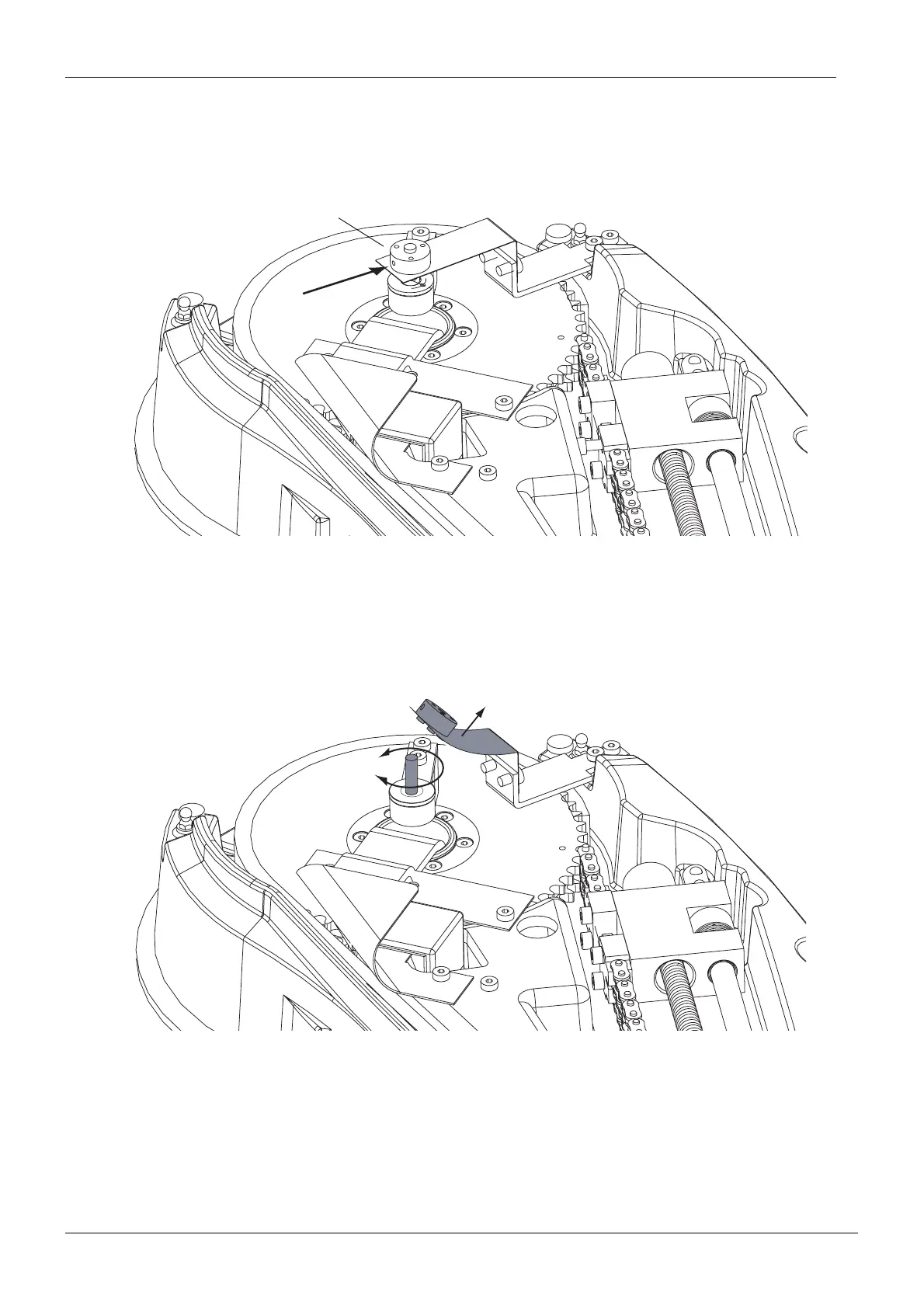

Loosen the attachment screw of shoulder joint angle sensor coupling with the 1.5mm Allen
key (Fig. 94, arrow).
Figure 94
Lift the sensor coupling up and rotate the angle sensor axle until the empty arrow appears on
the display.
Figure 95
Replace the sensor coupling. Note, that the sensor coupling plate must not hit the sensor
body.
Shd_sens1.eps
Sensor coupling
Shd_sens2.eps
