Chapter H - CEPHALOSTAT
ProMax X-ray unit with Dimax3 H-31
ADJUSTMENTS AND CALIBRATIONS
Technical manual

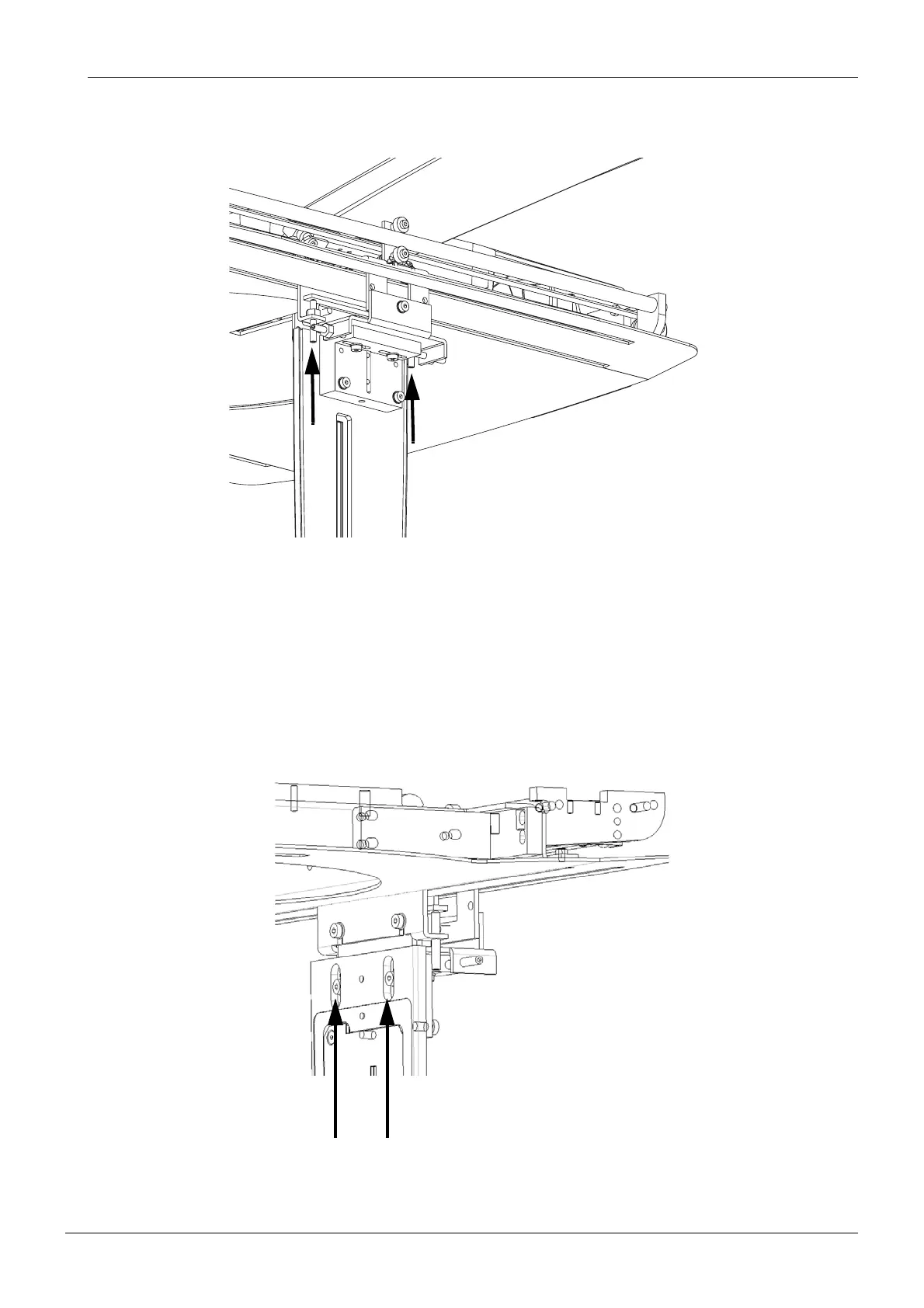

To adjust the collimator plate position sideways tighten one angle adjustment screw as much
as you loosen the other.
Figure 54
Check the adjustments and tighten the attachment screws.
Adjusting the vertical position of the second primary collimator
Loosen the two vertical adjustment locking screws with 3mm Allen key.
Figure 55
PXR_Adj_digiceph11.eps
Angle adjustment screws
PXR_Adj_digiceph19.eps
Collimator vertical position locking screw
