Planmeca ProMax X-ray User Manual

Chapter F - PATIENT SUPPORT ARM
F-2 ProMax X-ray unit with Dimax3
ADJUSTMENTS
Technical Manual

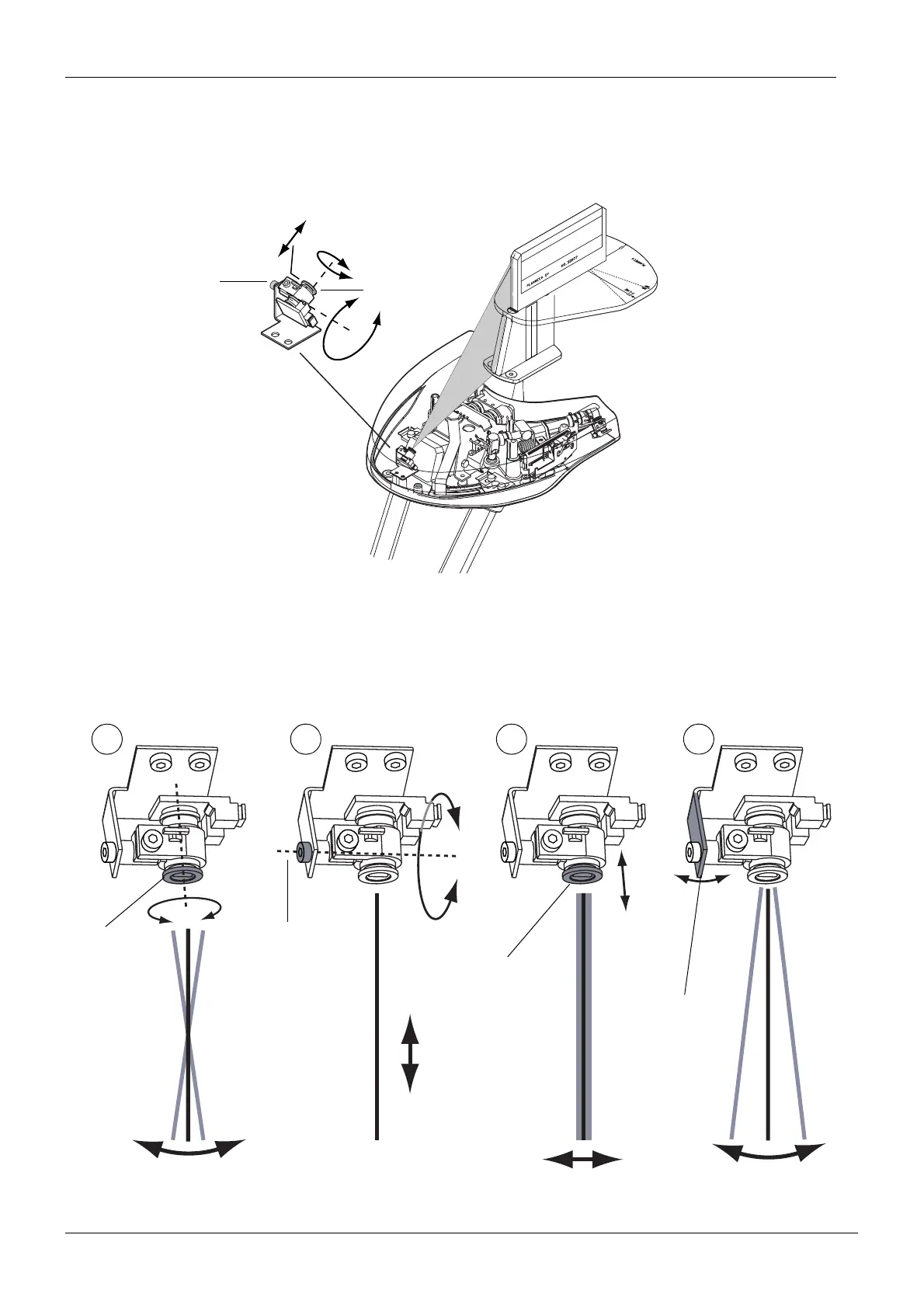

Midsagittal plane positioning light adjustment
Remove the patient support table cover according to the instructions given in section 2.1
“Patient support table cover” on page F-7.
Figure 2
To adjust the light beam angle rotate the lens assembly of the light (Fig. 3, 1).
To adjust the light vertical position loosen the attachment screw of the laser light assembly
and rotate the assembly (Fig. 3, 2).
To focus the light beam adjust the depth of the lens assembly (Fig. 3, 3).
To adjust the light beam horizontal position bend the light attachment plate (Fig. 3, 4).
Figure 3
A
dj_pat_pos_lights.eps
Midsagittal plane positioning light
Lens assembly
Light assembly
attachment screw
Adjust_laser.eps
1 2 3
Lens
Lens assembly
Light assembly
attachment screw
assembly
4
Light attachment
plate
