Chapter H - CEPHALOSTAT
H-60 ProMax X-ray unit with DImax3
DETACHING AND ATTACHING THE SENSOR HEAD
Technical manual

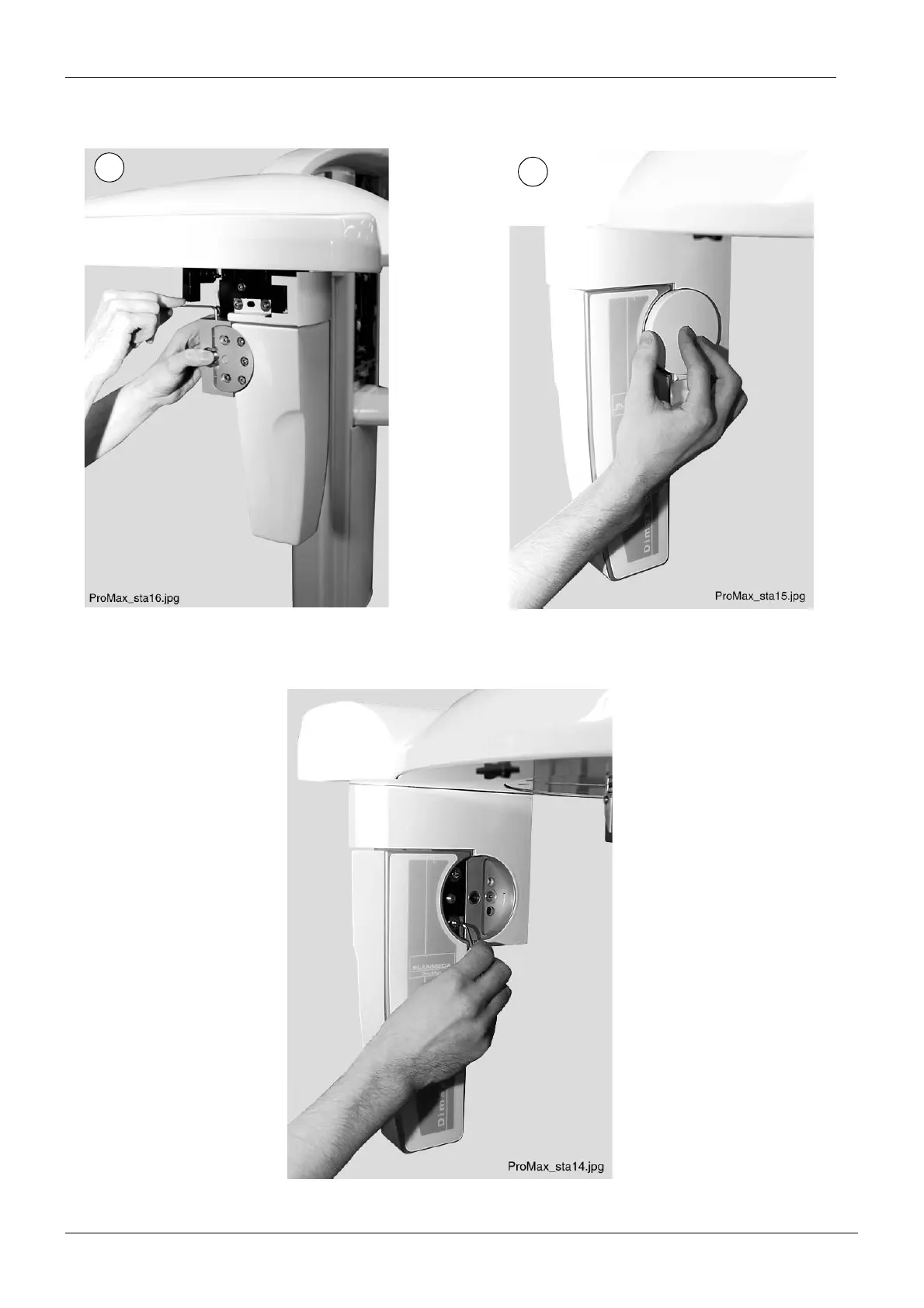

Loosen the button axle attachment screw with 3mm Allen key and push the button axle
outwards (Fig. 106, 1). Remove the locking plate from the connector (Fig. 106, 2).
Figure 106
Unscrew the sensor head locking screws from the attachment pins with 3mm Allen key.
Remove the screws and washers.
Figure 107
1
2
