1 GENERAL & TECHNICAL DATA
Technical manual Planmeca ProX 9

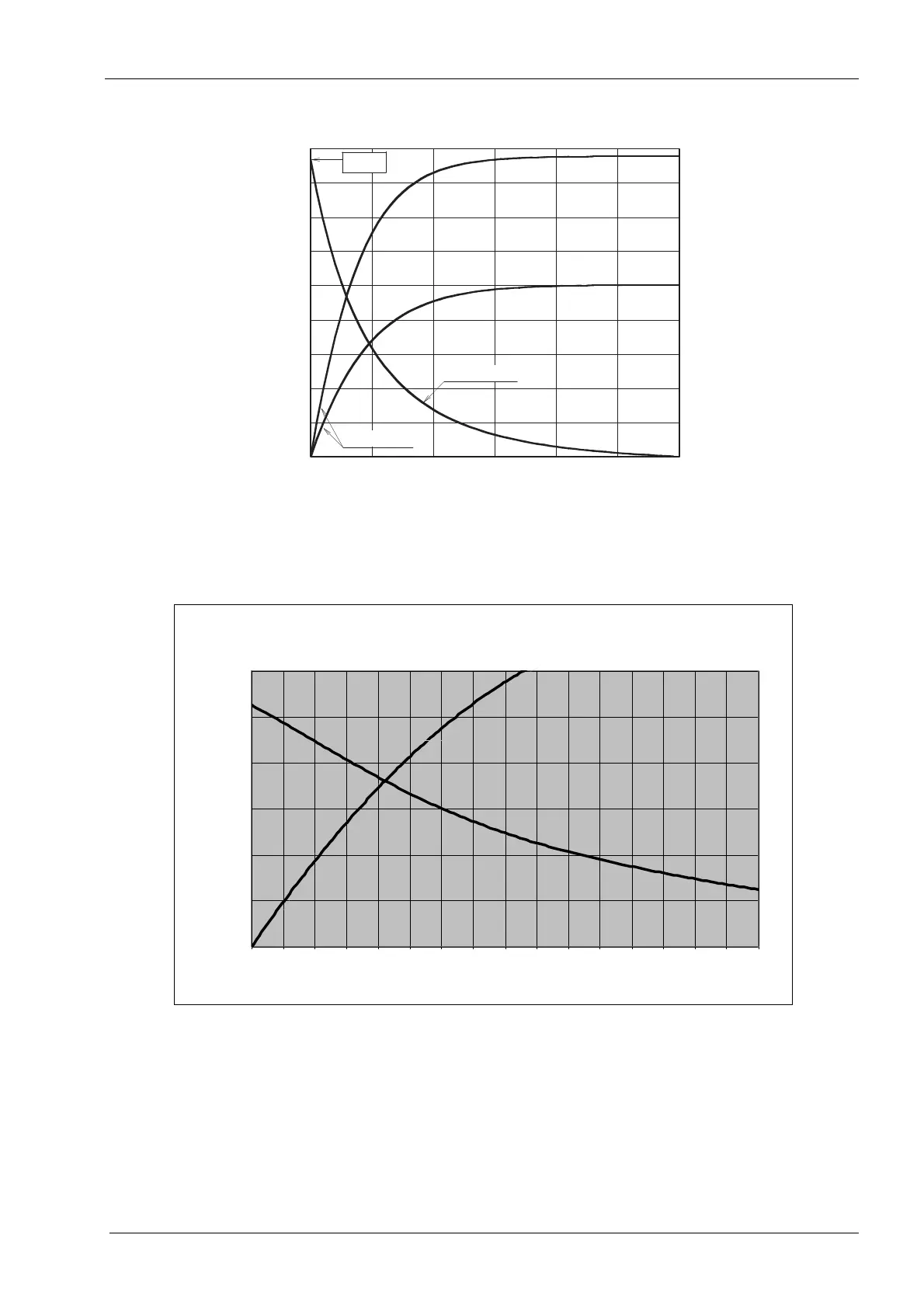

Anode heating/cooling curve of the X-ray tube
X-ray tube assembly heating/cooling curve
0
500
1000
1500
2000
2500
3000
3500
4000
4500
0 50 100 150 200 250 300
HEAT STORAGE [J]
TIME [s]
HEATING
COOLING
4300J
100W
50W
X-ray tube as sembly heating/cooling curve
13,5W
0
20
40
60
80
100
120
0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240
Time (min)
Heat Storage (kJ)
