Polaris A12MH46AX

1.8
GENERAL INFORMATION
9923412 - 2012 Sportsman 400/500 and EFI Tractor Service Manual
© Copyright 2011 Polaris Sales Inc.

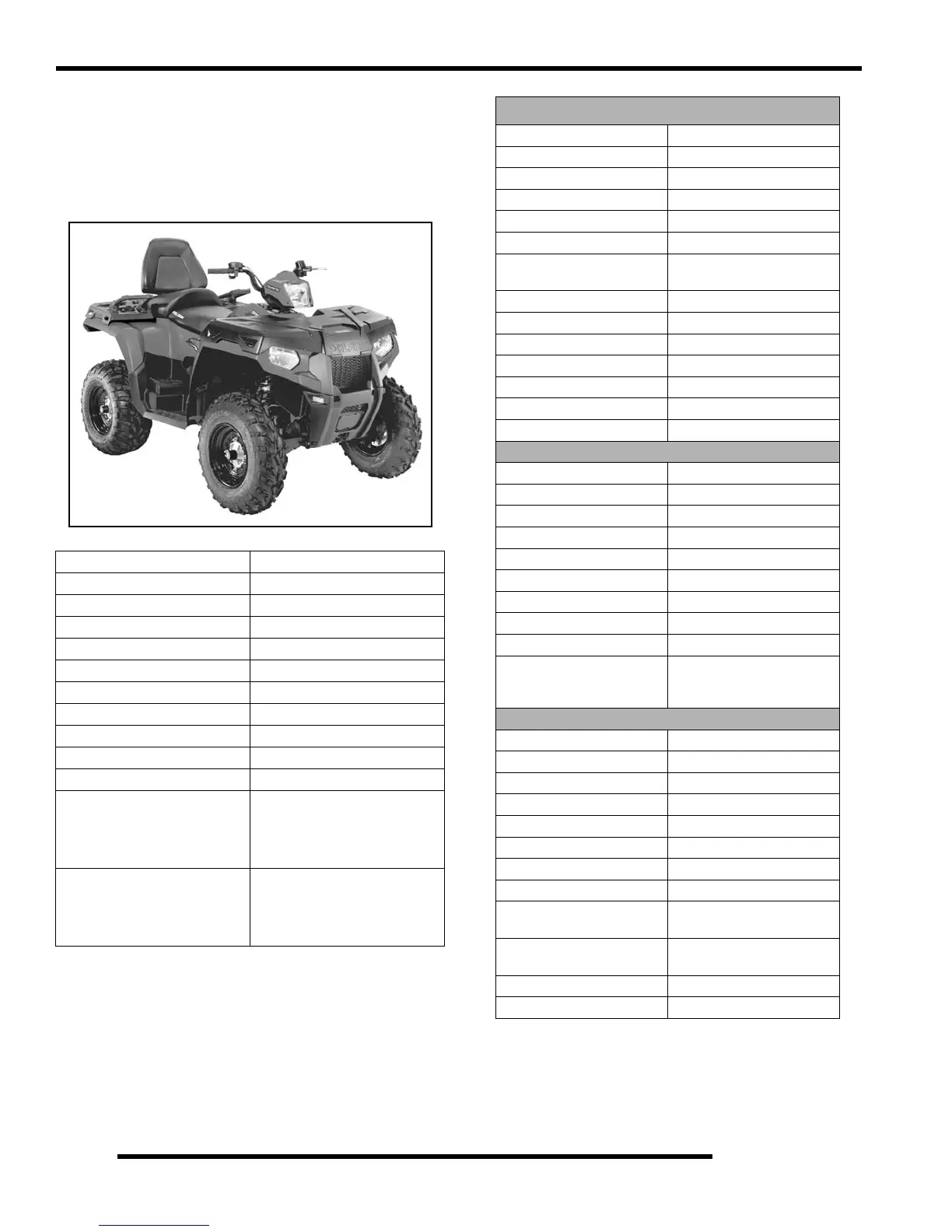

2012 Sportsman Touring 500 HO
MODEL NUMBER: A12DH50AX, AZ


ENGINE MODEL: EH500PLE13B
Category Dimension / Capacity
Length 86 in./218 cm
Width 48 in./122 cm
Height 48 in./122 cm
Wheel Base 57 in./145 cm
Ground Clearance 11 in./28 cm
Dry Weight 723 lbs./328 kg
Front Rack/Box Capacity 90 lbs./40.8 kg
Rear Rack Capacity 180 lbs./82 kg
Max. Weight Capacity 485 lbs. / 220 kg
Towing Capacity 1225 lbs. / 555.7 kg
Unbraked Trailer Towing
Capacity (EU)*
NOTE: *Data based on
EU Directive: 76/432/EEC
1995 lbs. / 905 kg
Hitch Tongue Capacity 120 lbs./54.4 kg
Rear rack capacity and
tongue weight not to
exceed 180 lbs./82 kg
ENGINE
Platform Fuji Single Cylinder
Engine Model Number EH500PLE13B
Engine Displacement 498cc
Number of Cylinders 1
Bore & Stroke (mm) 92 x 75 mm
Compression Ratio 10.2:1
Compression Pressure 70-90 psi W/Compression
Release
Engine Idle Speed 1200+/- 200 RPM
Engine Max Operating Rpm 7000 RPM
Cooling System / Capacity Liquid - 2.7 qt / 2.5 ltr
Overheat Warning HOT on Instrument Cluster
Lubrication Pressurized Dry Sump
Oil Requirements / Capacity Polaris 2W-50 2 qt. / 1.9 litre
Exhaust System Single Pipe USFS Approved
Fuel System
Carburetor Mikuni BST 40mm
Main Jet 150
Pilot Jet 40
Jet Needle / Clip Position 6MGH1-94-3
Needle Jet X-6M
Pilot Screw 2 Turns Out (initial)
Pilot Air Jet 160
Float Height 14.7mm ± 1 (.58 ± 0.40")
Fuel Delivery Fuel Pump
Fuel Capacity / Requirement 4.25 gal US / 16 liters
87 Octane (minimum)
or 89 Oxygenated
Electrical
Alternator Output 260 w @ 3000 RPM
Lights : Pod 50 watts
Grill 2 x 50 watts
Brake 2 x 8.26 watts
Tail 2 x 26.9 watts
Ignition System DC/CDI Ignition
Ignition Timing 30°± 1 BTDC @ 5000 RPM
Spark plug / Gap BKR6E / .035 in. / 0.9 mm
Battery Maintenance-Free / 12 Amp
Hr.
Circuit Breakers 5 / 15 / 20 Amp Fuses
10 Amp Circuit Breaker - Fan
Starting Electric
Instrument Cluster Analog Speedo w/ LCD
