10.33
ELECTRICAL
10
9923412 - 2012 Sportsman 400/500 and EFI Tractor Service Manual
© Copyright 2011 Polaris Sales Inc.

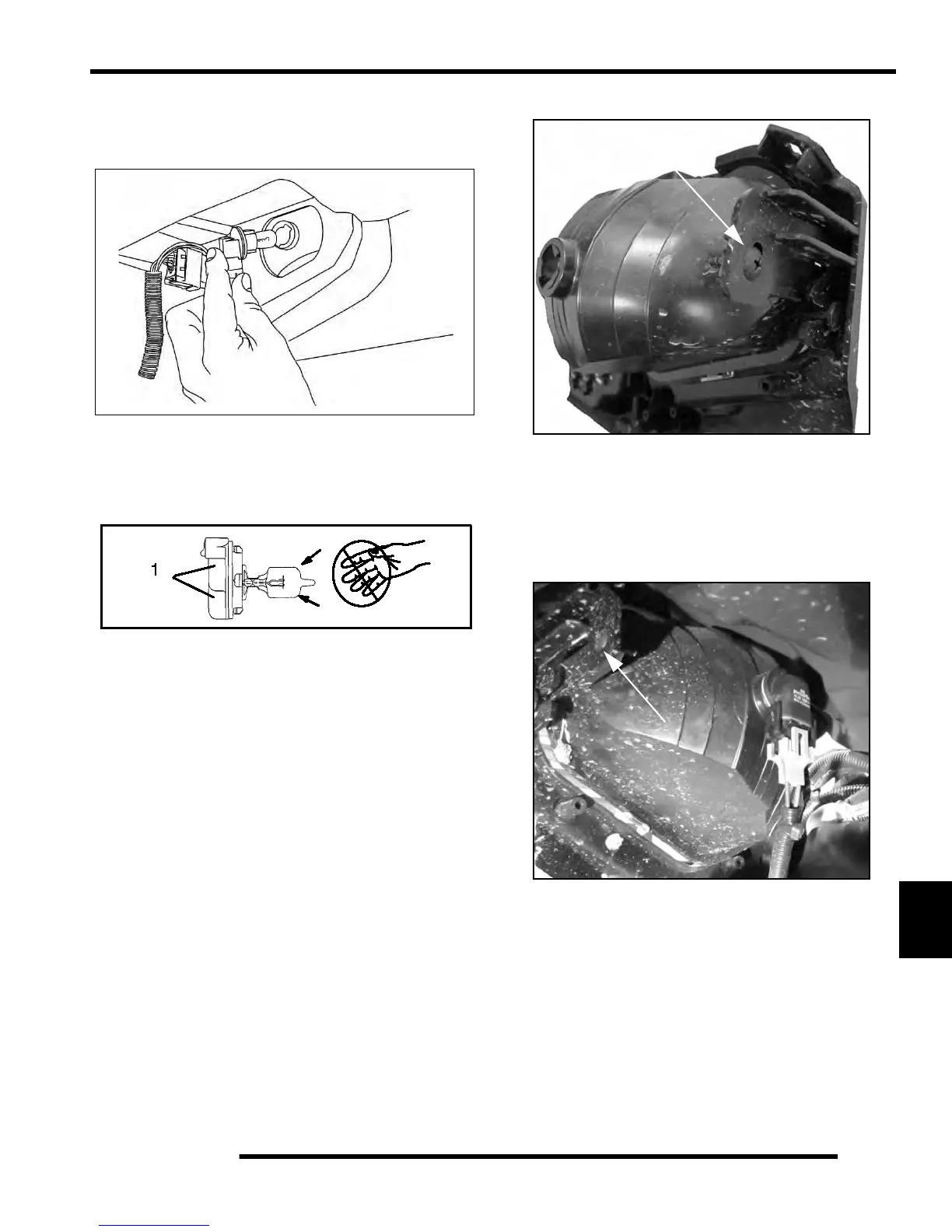

1. Turn the back of the headllamp harness in a counter-
clockwise direction to loosen.
2. Pull the harness assembly out from the headlight
as
sembly.
3. Remove the lamp and replace with a new headlamp.
NOTE: Do not touch the new lamp with bare fingers.
Ho
ld the plastic part (1) of the lamp. Oil from your
skin leaves a residue, causing a hot spot that will
shorten the life of the lamp.
4. Install the harness assembly into the headlight
a
ssembly. Turn the headlight harness clockwise to
secure the headlamp into place.
Lower Headlamp Housing Removal (if required)
5. Remove the upper and lower portion of the front
b
umper as outlined in chapter 5.
6. Remove the screw that secures the lower headlamp.
7. Remove retaining O-ring from inner headlamp mount.
8. Pull the headlamp out of the locking tab.
Low Beam Headlight Adjustment (Non Intl)
1. The low beam can be adjusted slightly upward or
downward.
2. Loosen the phillips screw located at the rear of the
he
adlamp.
3. Tilt the headlamp upward or downward.
4. Tighten the screw.
