10.34
ELECTRICAL
9923412 - 2012 Sportsman 400/500 and EFI Tractor Service Manual
© Copyright 2011 Polaris Sales Inc.

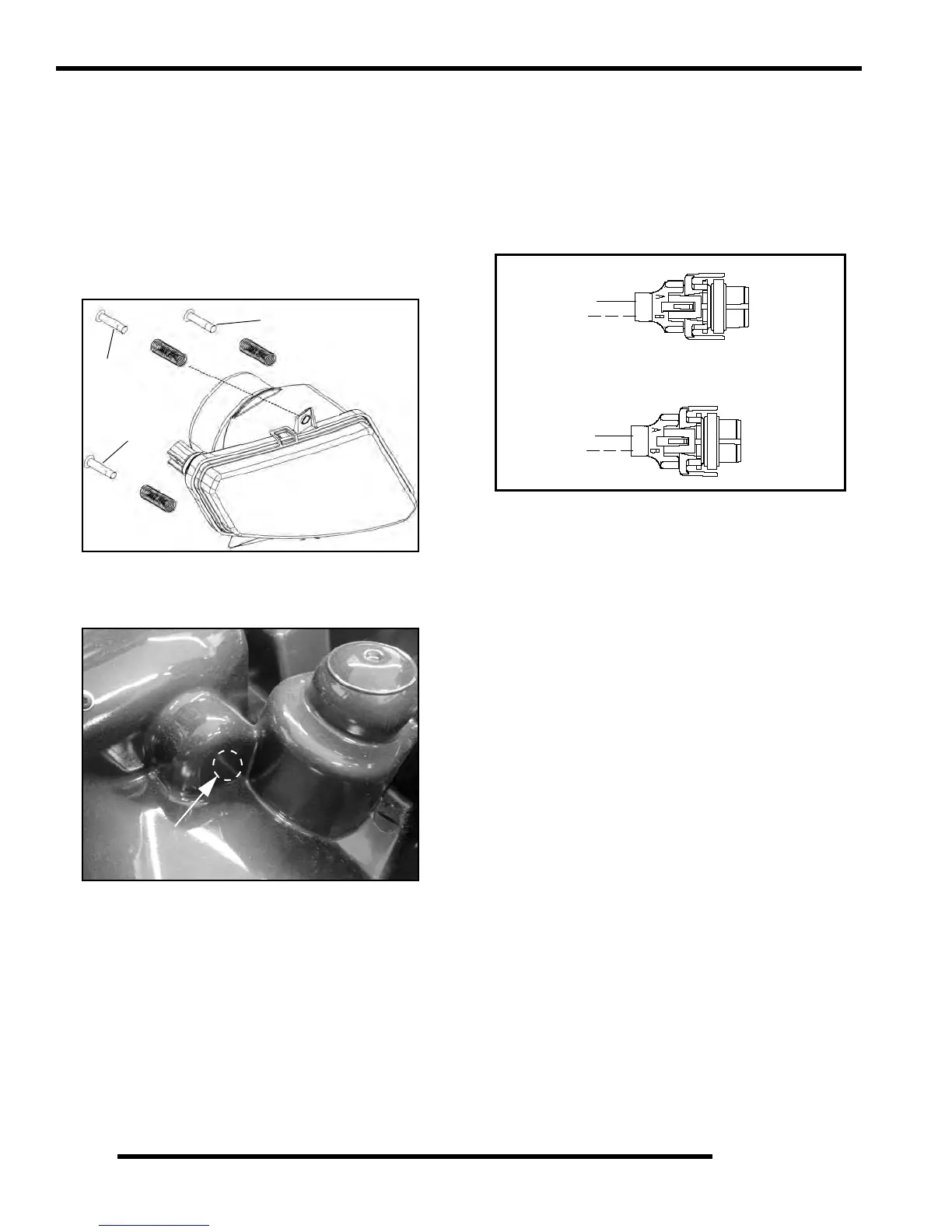

Lower Headlight Adjustment (Forest Tractor)
NOTE: The following procedure may be needed on
some international units.
1. The bottom two headlight mounting screws /
a
djusters (A) can be access directly through the
fender openings.
2. The single upper headlight mounting screw / adjuster
(B) is only accessible
after a .55” (14mm) hole is drilled
into the front cab.
3. Drill a .55” (14mm) hole in the center of the boss as
in
dicated below to access the upper mounting /
adjustment screw.
4. Adjust the beam to the des
ired position by loosening
or tightening the (3) T-25 adjustment / mounting
screws.
5. Once the adjustment is completed, plug the .55”
(
14mm) access hole with a compartment plug (PN
5412981).
6. Repeat procedure to adjust the other lower headlight.
Headlamp Switch Test
1. Remove the headlight pod cover.
2. Set meter to DC Volts and probe the headlamp plug
wir
es (Brown and Yellow) at back of connector for 12
Volts.
3. Turn ignition and headlight on. If there is no power,
c
ontinue with checks to the harness and fuses.
Brown
Yellow
Upper Headlamp Plug Wires
Brown
Green
To Next Page
