CLUTCHING
9923412 - 2012 Sportsman 400/500 and EFI Tractor Service Manual
© Copyright 2011 Polaris Sales Inc.

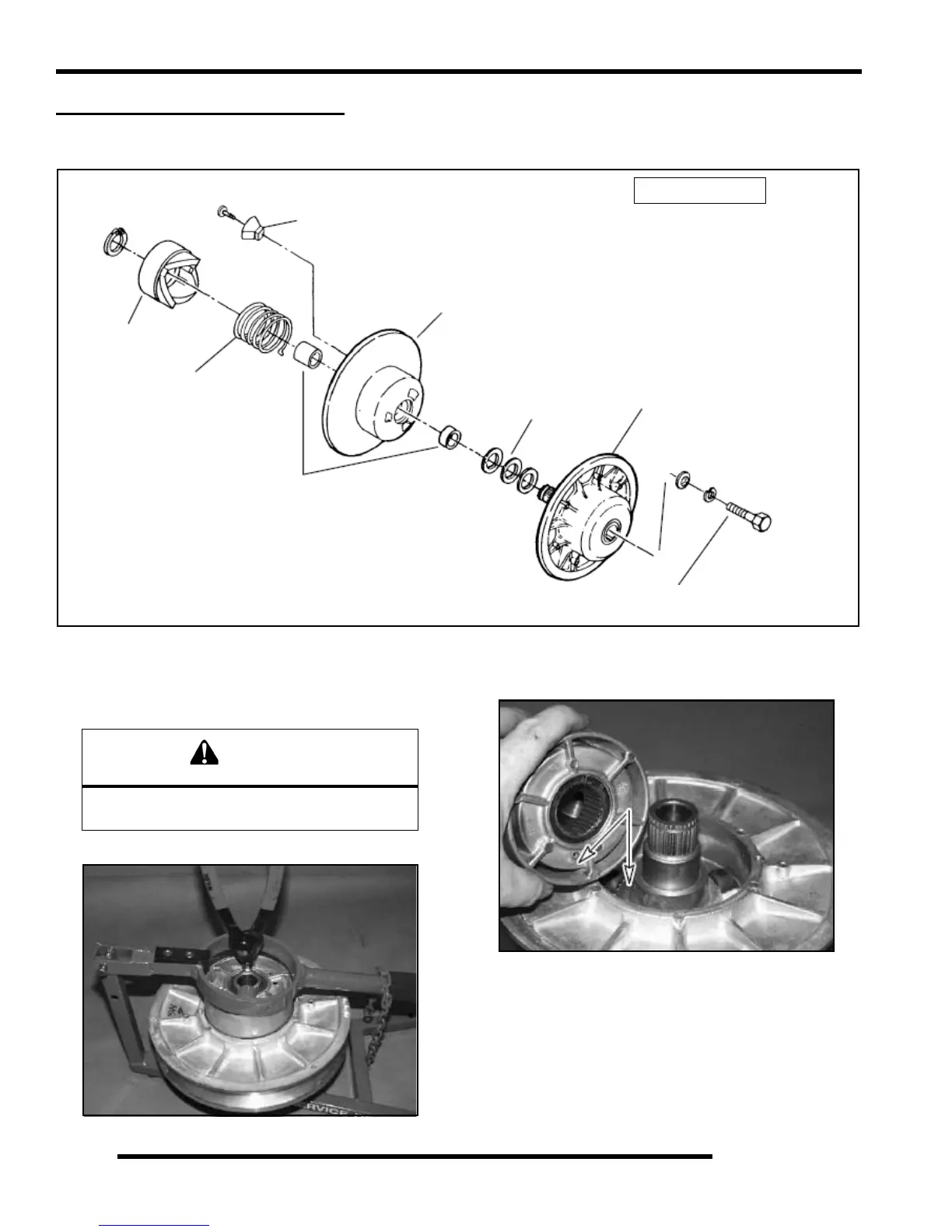

NON EBS DRIVEN CLUTCH
Exploded View
Clutch Disassembly / Inspection
1. Apply and hold downward pressure on the helix, or
place driven clutch in the Clutch Compression Tool
(PN 8700220).
2. Remove snap ring retainer.
3. Note the location of the spring and remove helix.
4. Note the location of the spring in the moveable
sheave, and remove the spring.
5. Check alignment of tabs on spring. Replace the
spring if tabs are misaligned or the spring coils are
distorted.
Button Ramp
Inner Sheave
Spacer Shims
Outer Sheave
Driven Clutch Bolt
Moveable Bearing
Stationary Ramp
Clutch Spring
DRIVEN CLUTCH
Wear eye protection when removing snap ring to
prevent serious personal injury.
