Instrument Cluster Diagnostic Mode
NOTE: This gauge features auto shut-off protection
if the voltage on the DC bus is excessive. This is
usually the result of an open battery condition, and
the gauge is designed to survive such an event.
NOTE: If the gauge will not indicate what gear it is in
a
nd will not allow AWD operation, AWD can still be
enabled by holding in the mode/override button.
NOTE: As long as you are in the diagnostic mode,
t
he wrench icon will remain lit.
NOTE: Any movement of the tires will trigger the
s
peedometer out of the diagnostic mode and into
standard display mode.
NOTE: To leave the diagnostic mode, turn the key
s
witch off and on.
1. Turn the key switch off
and wait 10 seconds.
2. Set the park brake and shift the transmission to
n
eutral.
3. Hold the mode/reverse override button as you turn the
key s
witch on.
4. Release the switch as soon as the display is activated.
Use the mode/reverse override button to toggle through
th
e diagnostic screens.
NOTE: The initial screen display refers to the
s
oftware version installed on your ATV. This
information is only displayed briefly.

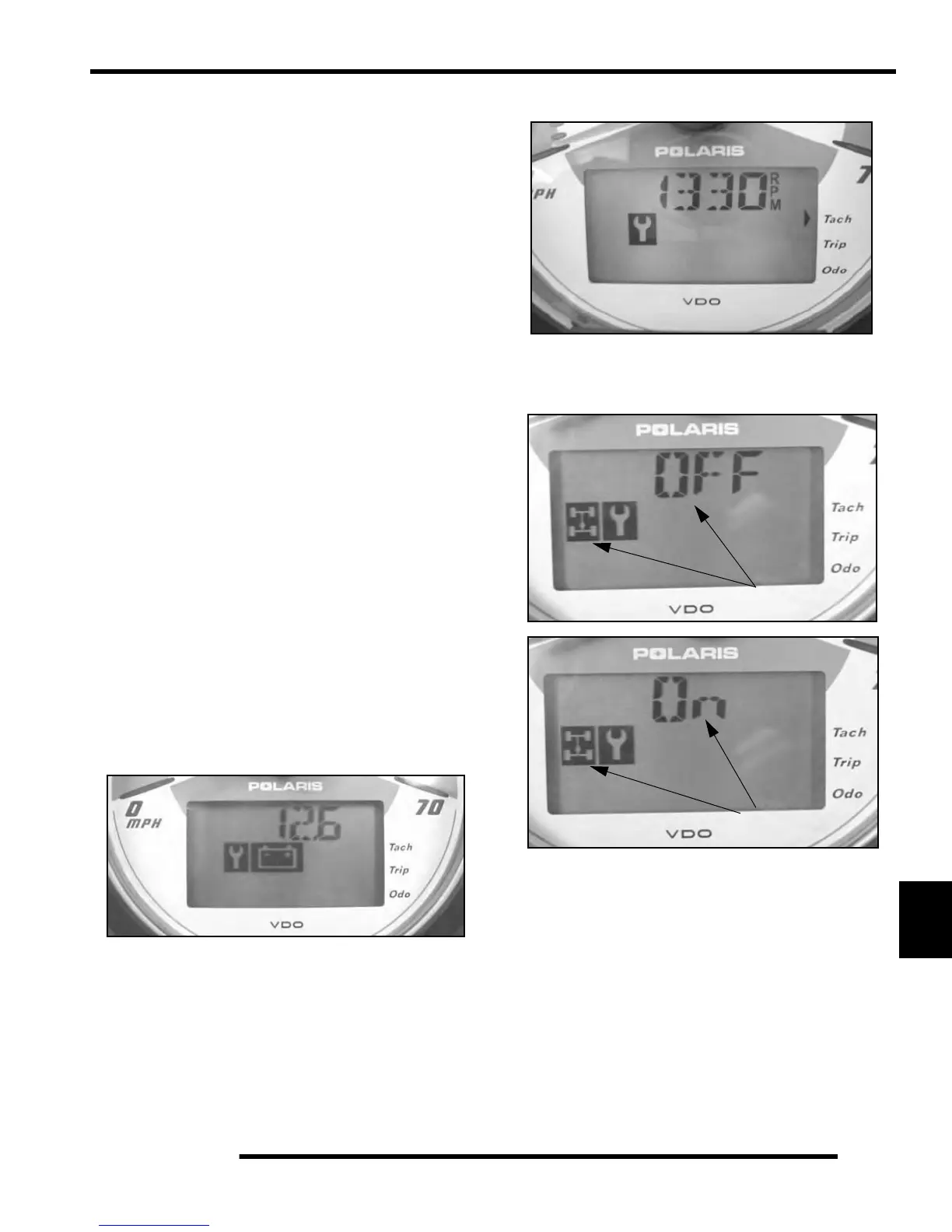

Screen 1: T
he first screen indicates battery voltage. Refer
to Ill. 2.
Screen 2: T
achometer (Ill. 3) indicates engine rpm.
Screen 3: A
WD diagnostic screen. This screen indicates
whether or not current is flowing through the AWD coil on
models with switchable AWD.
To Next Page
