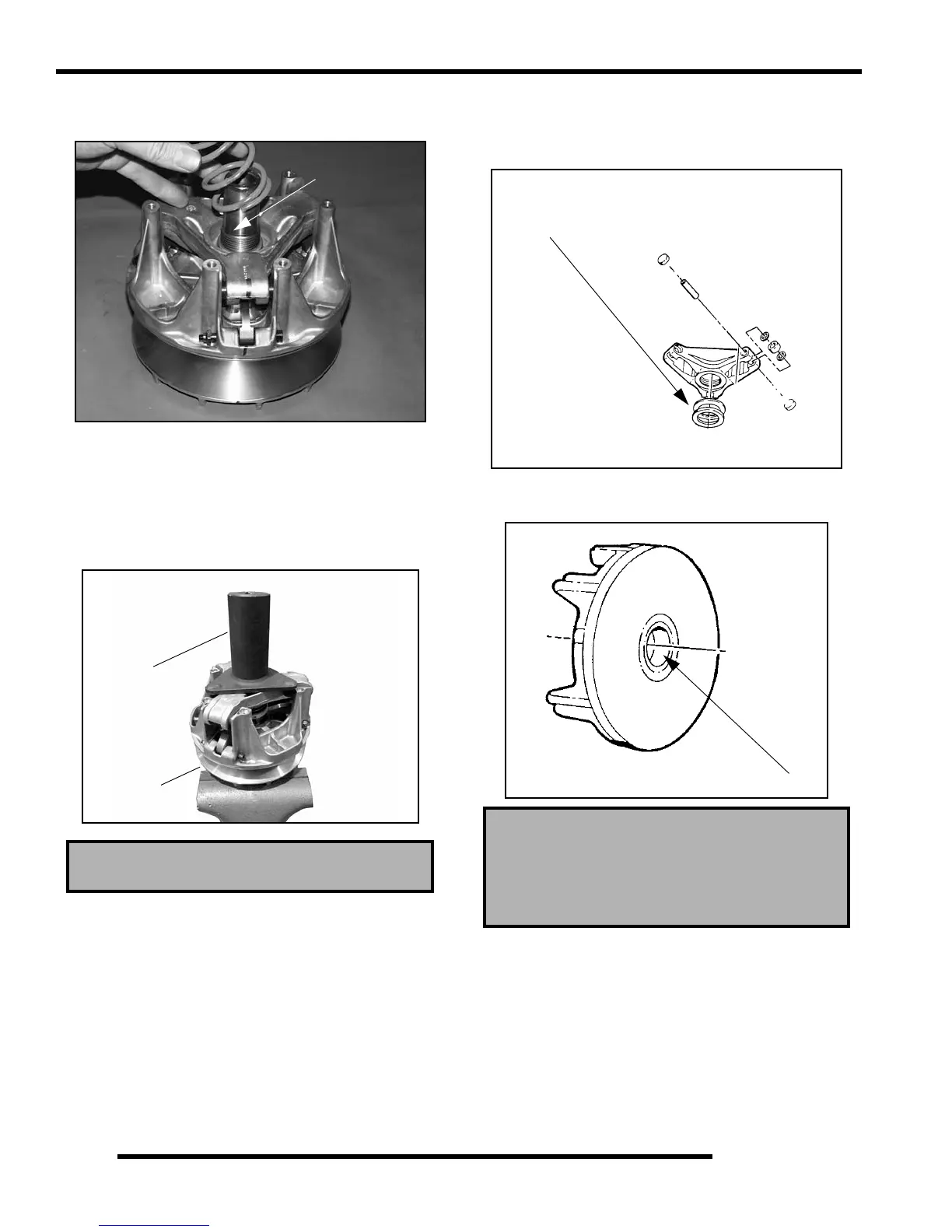

5. Remove and inspect spring. See “Drive Clutch Spring
Specifications” for spring inspection.
6. Remove the limiter spacer before spider removal.
Spider Removal
1. Install clutch in holding fixture and loosen the spider
(counterclockwise) using Clutch Spider Install Tool
(PN 2870341).
NOTE: It is important that the same number and
thickness of washers are reinstalled beneath the
spider during assembly. Be sure to note the number
and thickness of these washers.
2. Inspect the Teflon coating on the moveable sheave
bushing.
Clutch Holding Fixture: (PN 2871358-A)
Moveable Sheave Bushing Inspection: Replace
the cover bushing if more
brass than Teflon is visible
on the bushing. Refer to bushing replacement
in this chapter.
To maintain proper clutch balance and belt-to-
sheave clearance, be sure to reinstall original
quantity and thickness washers
