9.11
BRAKES
9
9923412 - 2012 Sportsman 400/500 and EFI Tractor Service Manual
© Copyright 2011 Polaris Sales Inc.

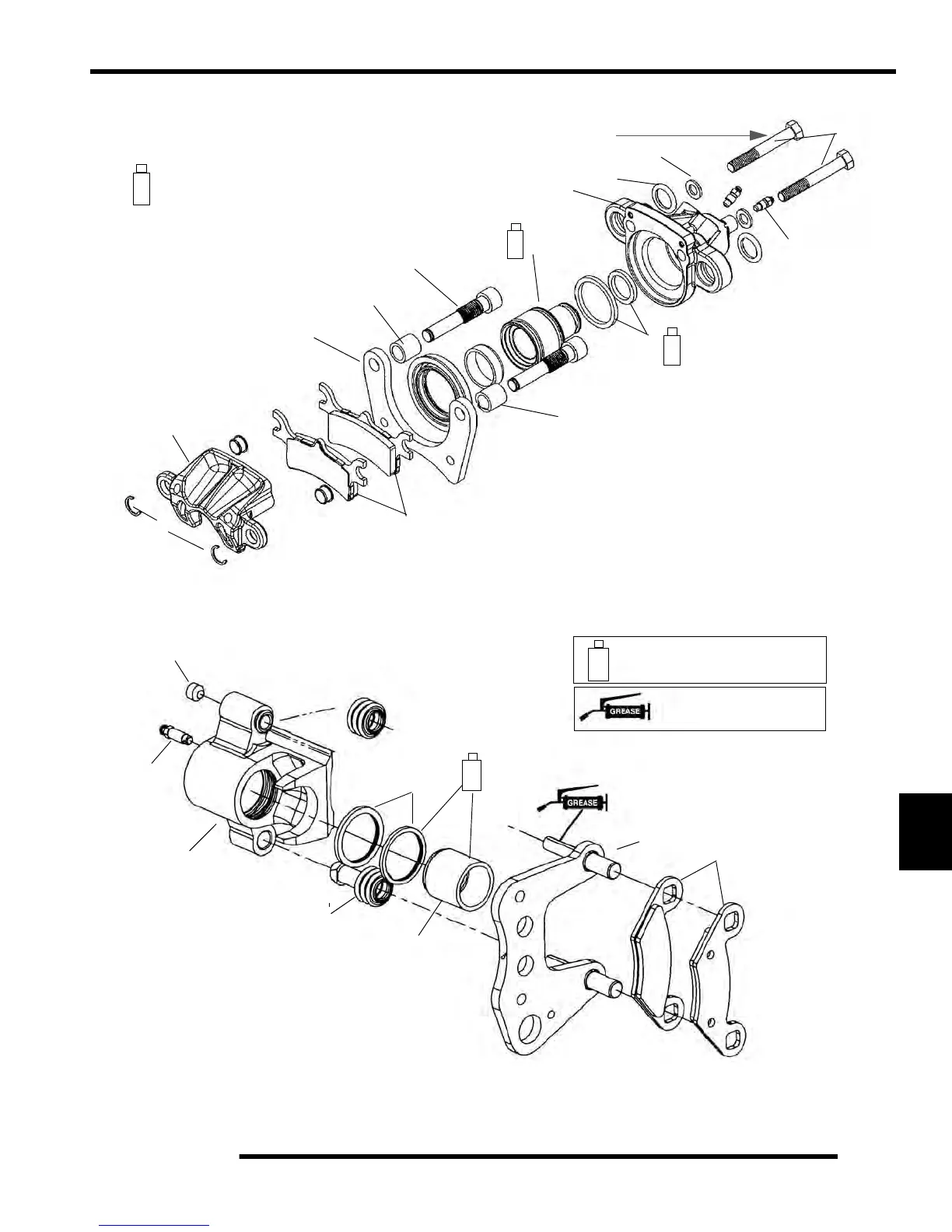

400, 500 HO, Tractor 500 (INTL.), Forest 500 (INTL.) Rear Caliper Assembly
Sportsman Forest 500 (INTL.) Front Caliper Assembly
A. Anvil Bolts
B. Bleed Screws
C. Washers
D. O-rings
E. Rear Housing
F. Seals
G. Piston
H. Slide Pins
I. Bushings
J. Seal
K. Bracket
L. Pad
M.Front Housing
N. Retaining Clips
3
Apply Polaris DOT approved Brake fluid
to component.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
3
3
30-35 ft.lbs.
(41-48 Nm)
25-30 in lbs.
(2.80-3.40 Nm)
16-18 ft.lbs.
(22-24 Nm)
A. Socket Set Screw
B. Bleeder Screw
C. Caliper Asm.
D. Boot
E. Square O-rings
F. Piston
G. Caliper Mount
H. Brake PAds
A
B
C
D
E
F
G
H
Disc brake caliper
lube.
3
3
Apply Polaris DOT approved
Brake Fluid to Component
