CLUTCHING
6
9923412 - 2012 Sportsman 400/500 and EFI Tractor Service Manual
© Copyright 2011 Polaris Sales Inc.

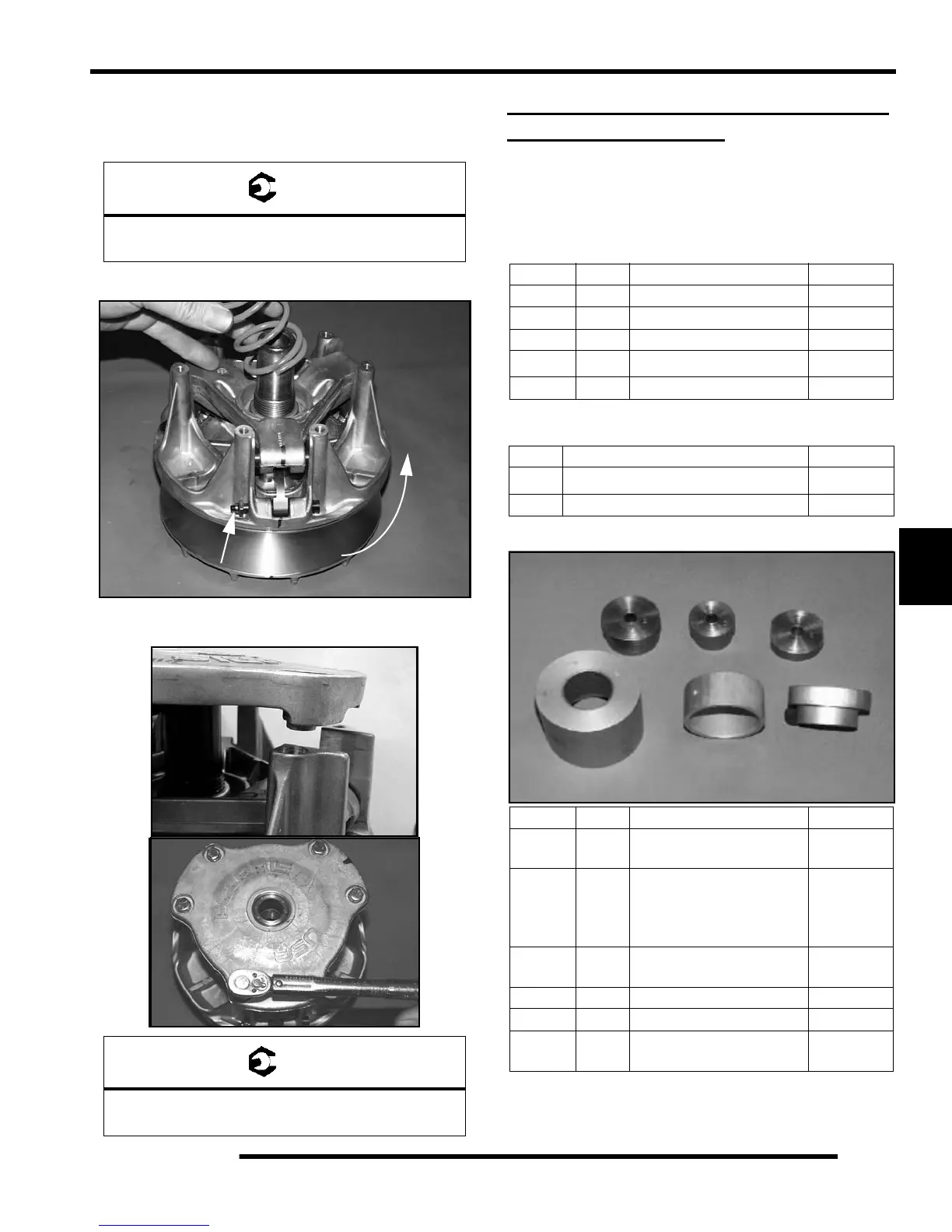

6. Install limiter spacer on top of spider.
7. Reinstall shift weights using new lock nuts on the
bolts.
8. Reinstall clutch spring.
9. Reinstall cover, aligning bosses on the tower and
cover. Torque cover bolts evenly to specification.
DRIVE CLUTCH BUSHING SERVICE
(NON EBS AND EBS)
Bushing Service
IMPORTANT: Special Tools Required
*Clutch Bushing Replacement Tool Kit (PN 2871226)
= T
Shift Weight Lock Nuts:
15-25 In. lbs. (2.75 Nm)
= T
Cover Screw Torque:
100 in. lbs. (11.25 Nm)
Engine
Rotation
Nut on trailing side
EBS Clutch Bushing Tool Kit - 2201379
Item Qty. Part Description Part #
A, B 1 EBS Puller Tool 5132027
C 1 EBS Puller Nut 5132501
D 1 EBS Main Adapter 5132029
E1
EBS Bushing Removal
5132028
-- 1 Instructions 9915111
Additional Special Tools
Qty. Part Description Part #
1
Clutch Bushing Replacement Tool
2871226
1 Piston Pin Puller 2870386
Item Qty. Part Description Part #
#2 1
P-90 Drive/Driven Clutch
Bushing Install Tool
5020628
#3 1
Drive Clutch Cover
Bushing Removal/
Installation Tool (all
clutches)
5020629
#5 1
P-90 Driven Clutch Cover
Bushing Removal Tool
5020631
#8 1 Main Puller Adapter 5020632
#9 1 Adapter Reducer 5010279
#10 1
Number Two Puller
Adapter
5020633
#2
#3
#5
#8
#9
#10
