9.7
BRAKES
9
9923412 - 2012 Sportsman 400/500 and EFI Tractor Service Manual
© Copyright 2011 Polaris Sales Inc.

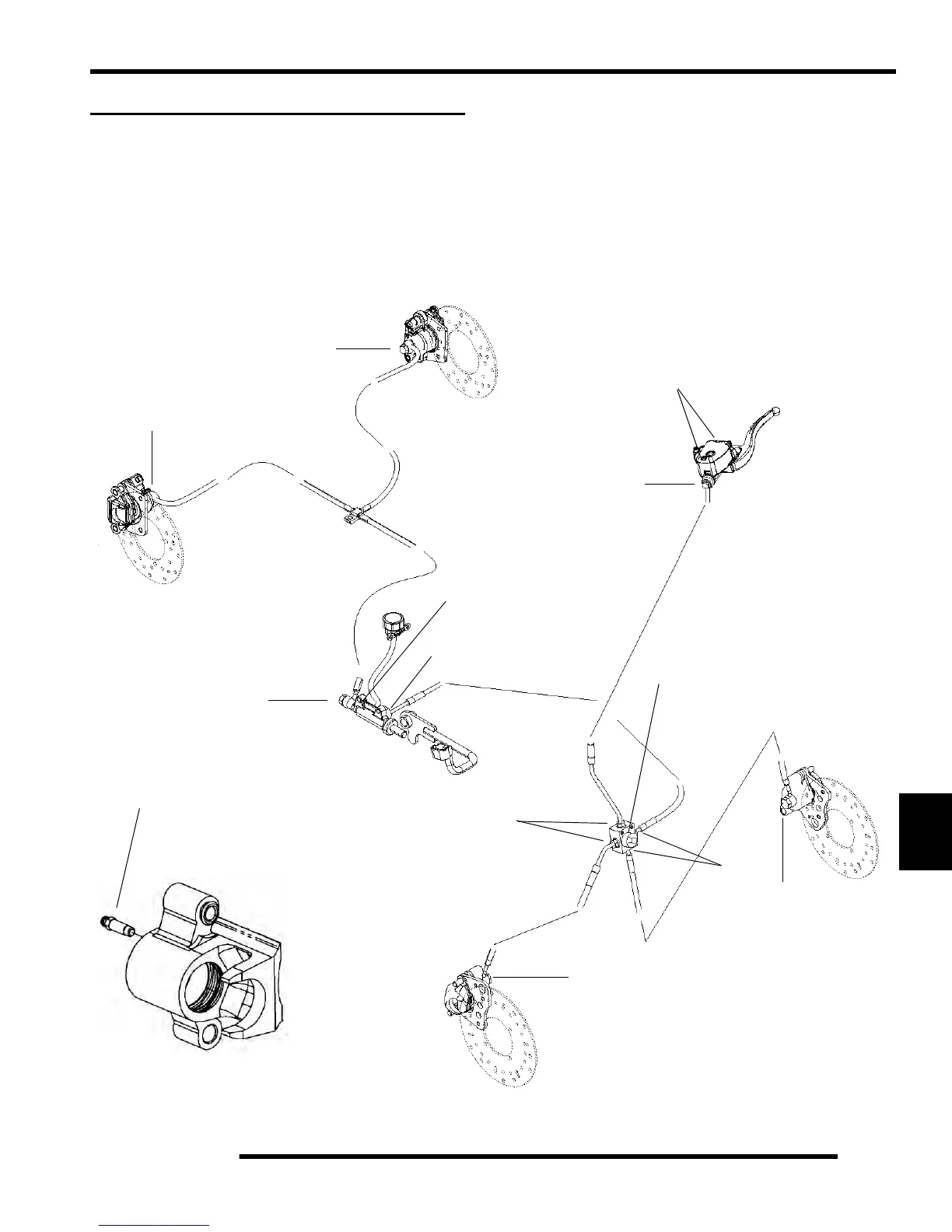

BRAKE SYSTEM EXPLODED VIEWS
Sportsman Touring 500 HO Component Exploded View
1) Master Cylinder Cover Screws: 7 in.lbs. (0.79 Nm)
2) Banjo Style Fitting: 15 ft.lbs. (21 Nm)
3) Flare Style Fittings: 12-15 ft.lbs. (16-21 Nm)
4) Brake Switch: 12-15 ft.lbs. (16-21 Nm) *Apply Pipe Sealant to Threads
2
2
1
2
2
3
3
2
2
3
4
*All Bleed Screws: 25-30 in.lbs. (2.80-3.40 Nm)
5) Dual Input Master Cylinder and Bleed Screw: 25-30 in. lbs. (2.8-3.4 Nm)
6) Front and Rear Caliper Bleed Screws: 36-60 in. lbs. (4.07-6.78 Nm)
6
5
