7.14
FINAL DRIVE
9923412 - 2012 Sportsman 400/500 and EFI Tractor Service Manual
© Copyright 2011 Polaris Sales Inc.

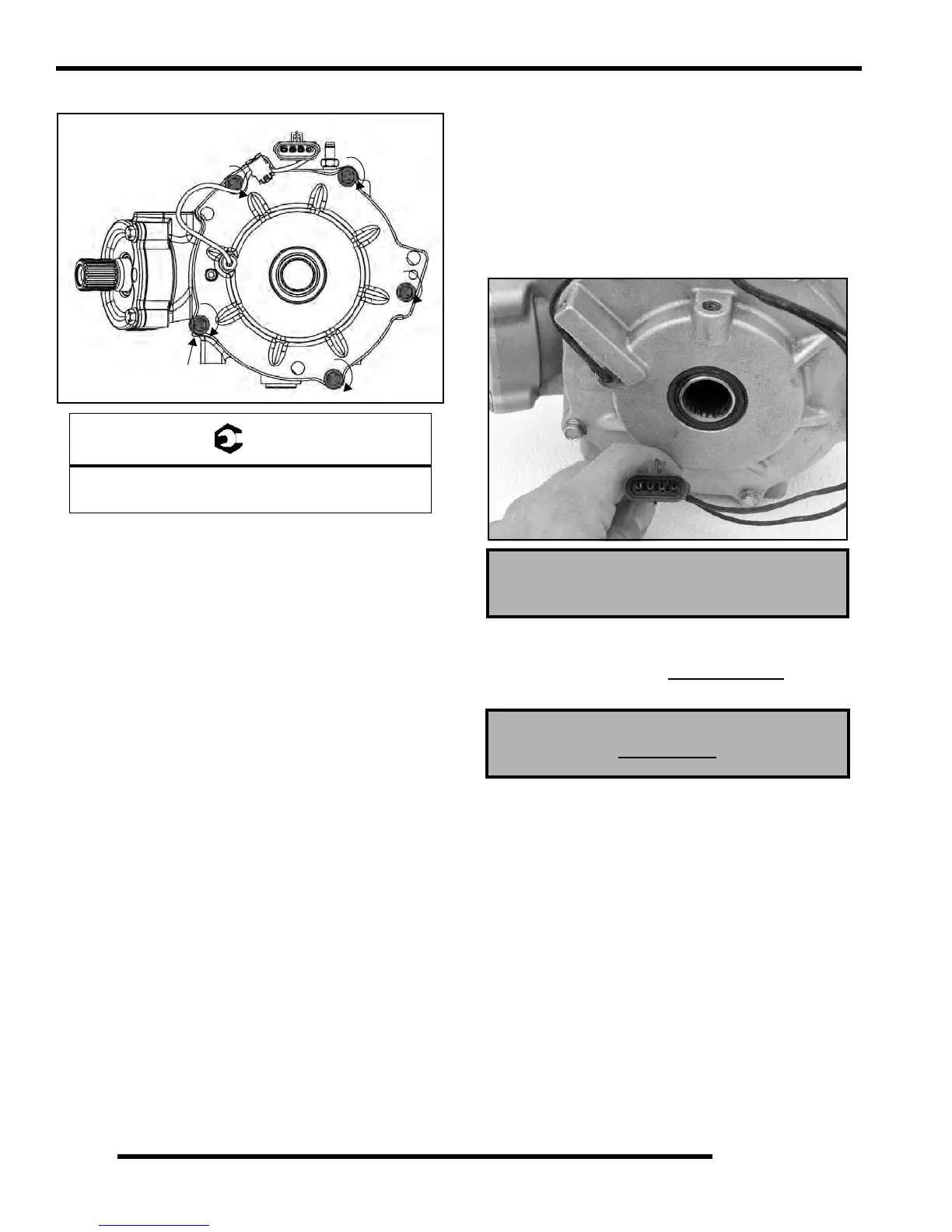

14. Torque the cover plate bolts to specification.
15. Lay the gearcase on the side with the output cover
facing up.
Front Gearcase Diagnosis
• Symptom: AWD Will Not Engage
1. Check the gearcase coil resistance. To test the
gearcase coil resistance, use the coil harness (Grey
& Brown/White).
NOTE: To test the gearcase coil resistance, use the
coil
harness. The gearcase coil should measure
between 22.8 ohms and 25.2 ohms.
2. Check the minimum battery voltage at the Grey &
Br
own/White wires that feed the hub coil wires. There
should be a minimum of
11.80-12.0 Volts present for
proper operation.
Output Cover Bolt Torque
7-11 ft. lbs.
Front Gearcase Coil Resistance:
24 ±10%
AWD Coil Applied Battery Voltage:
11.80-12.0 Vdc
