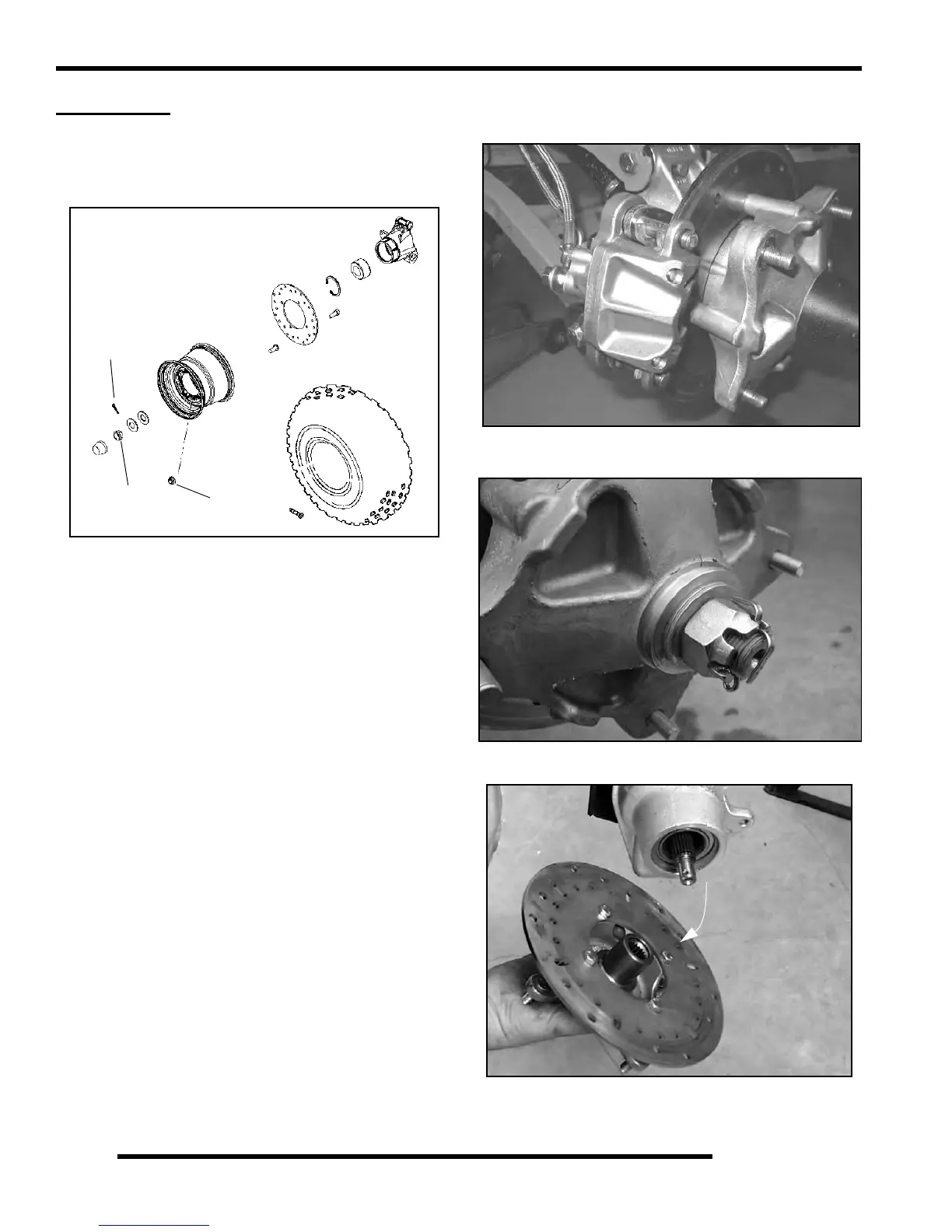

REAR HUB
Removal
1. Place the ATV in Park and lock the parking brake.
Remove rear hub cap.
2. Remove cotter pin (A).
3. Loosen the hub retaining nut (B).
4. Loosen the wheel nuts (C).
5. Safely support the rear of the ATV.
6. Remove wheel nuts and wheel.
7. Remove the rear brake caliper and safely suspend the
ca
liper from the frame with a piece of wire.
8. Remove hub nut, domed washer and flat washer.
9. Remove hub.
