9.32
BRAKES
9923412 - 2012 Sportsman 400/500 and EFI Tractor Service Manual
© Copyright 2011 Polaris Sales Inc.
Touring Rear Master Cylinder Removal and
Installation
1. Remove the RH footwell to gain access to the rear
master cylinder.
2. If required, remove the rear brake line from the master
cylinde
r. Use a suitable container to catch the brake
fluid. Dispose of brake fluid properly.
3. Remove the two bolts that secure the rear master
cylinde
r to the frame. Replace parts as needed.
4. To install the rear master cylinde
r, mount the master
cylinder to the frame and torque bolts to specification.
5. Reinstall the brake line and torque the banjo bolt to
s
pecification.
6. Perform brake bleeding procedures as outlined in this
ch
apter.
Master Cylinder to Frame Bolt Torque:
8 ft.lbs. (11 Nm)

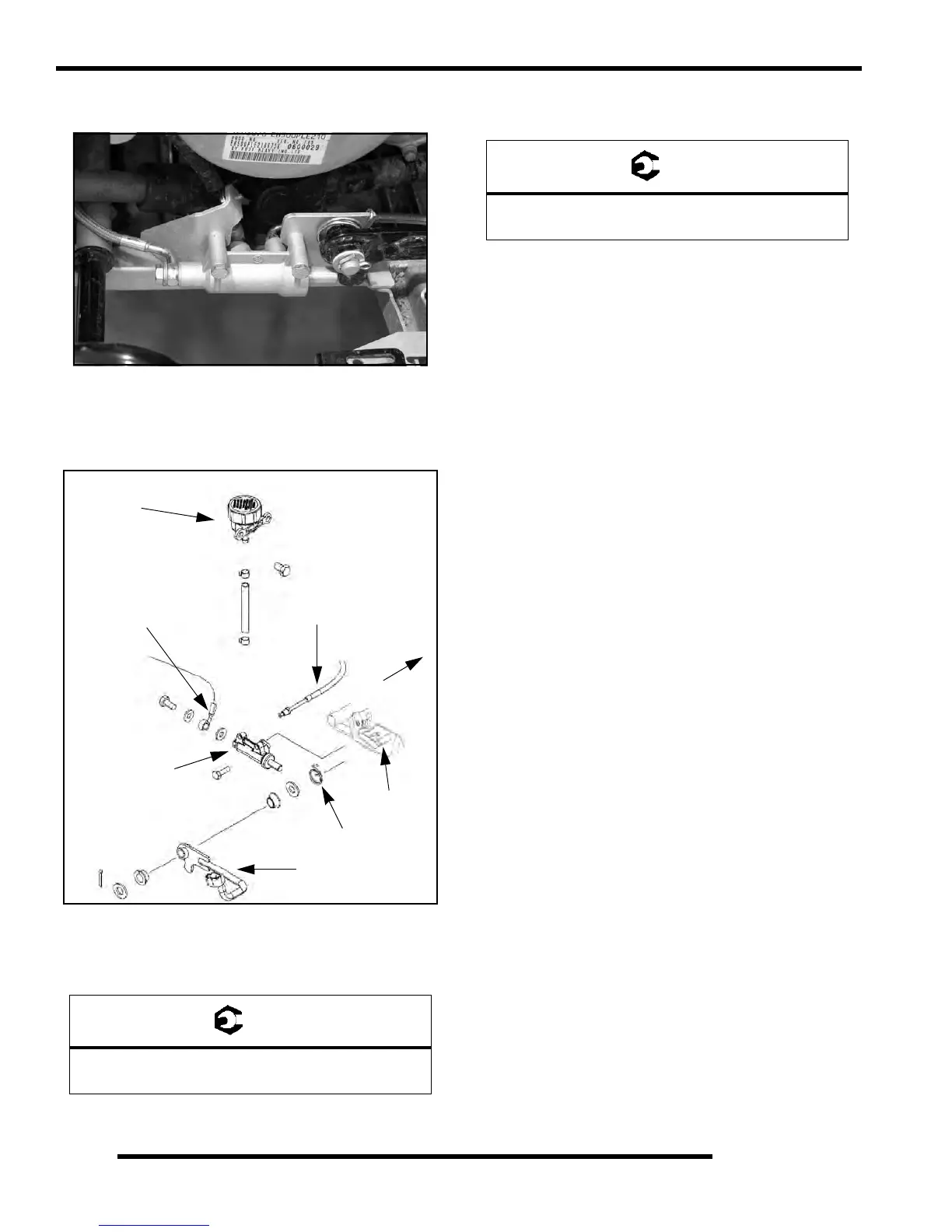

Frame
Brake Fluid Reservoir
Brake Lever
Front Brake Line
Brake Mount
Rear Brake Line
Spring
Rear Brake MC
Banjo Bolt Torque:
15 ft.lbs. (21 Nm)
