3.56

ENGINE

9923412 - 2012 Sportsman 400/500 and EFI Tractor Service Manual

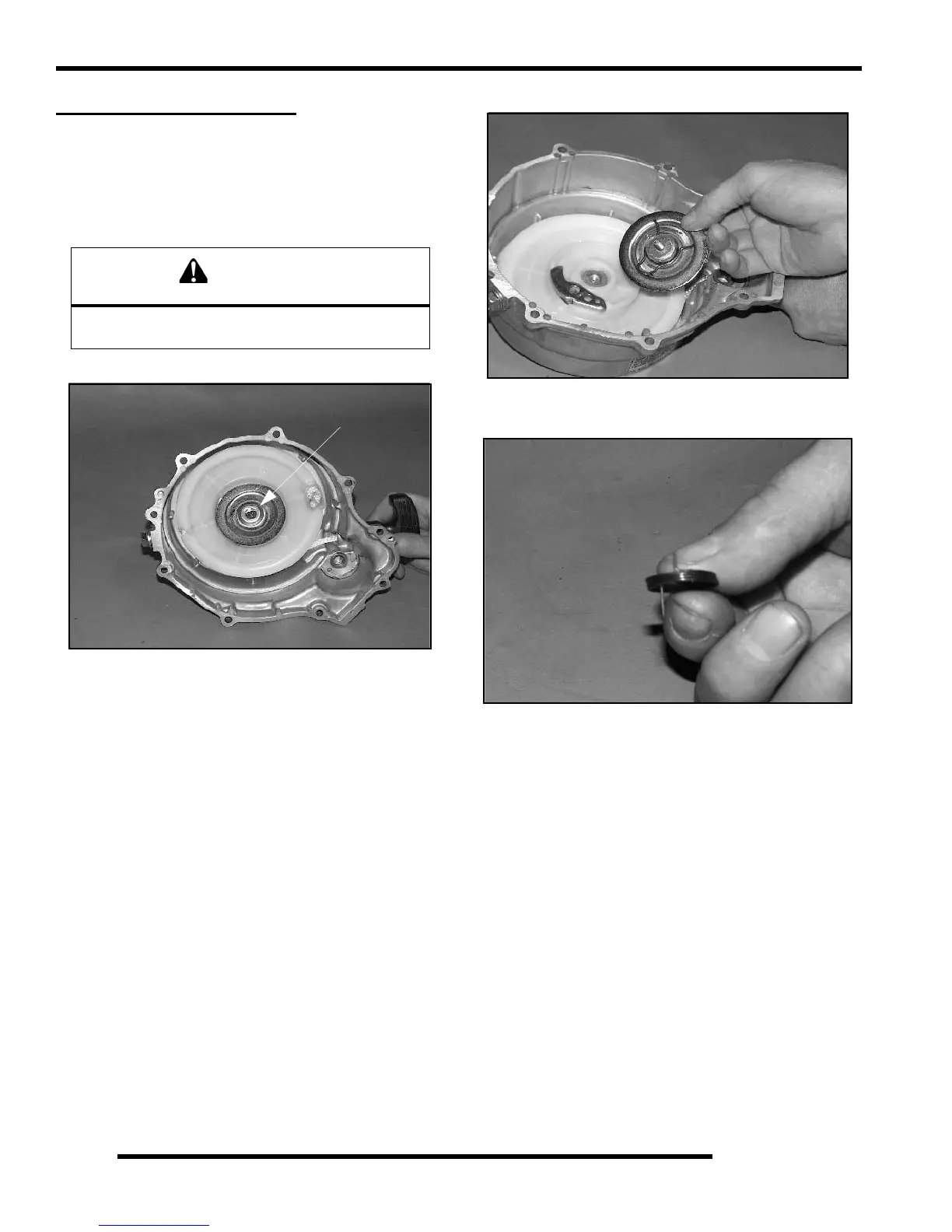

RECOIL (ACCESSORY)

Recoil Disassembly/Inspection

NOTE: 2009 models are not equipped with a recoil

as standard equipment. This section intended for

reference.

Replace any parts found to be worn or damaged.

1. Remove bolts and recoil from the engine.

2. Pull recoil rope (if applicable) so it is extended

approximately 12-18" (30-46cm). Check handle c-ring

for proper tension, and the handle for cracks or

damage which may allow water or dirt to enter the

recoil housing through the rope.

3. Remove handle from the rope and allow spring

tension on recoil to relax.

NOTE: The handle must seal tightly on the recoil

housing to prevent water from entering.

4. Remove center bolt from recoil friction plate (A).

5. Inspect plate for wear or damage. Inspect plate friction

spring for wear, damage, and proper tension. The

spring should fit tightly on friction plate.

6. Remove ratchet pawl with spring and inspect.

Replace spring or ratchet pawl if worn, broken, or

damaged.

NOTE: Long arm of spring engages reel. Short end

against pawl.

7. Hold reel firmly in housing. Pull rope handle until 12-

18" (30-46cm) of rope is exposed, and hold reel in

place.

CAUTION

The recoil is under spring tension. A face shield and

eye protection is required during this procedure.
