5.6

BODY / STEERING / SUSPENSION

9923412 - 2012 Sportsman 400/500 and EFI Tractor Service Manual

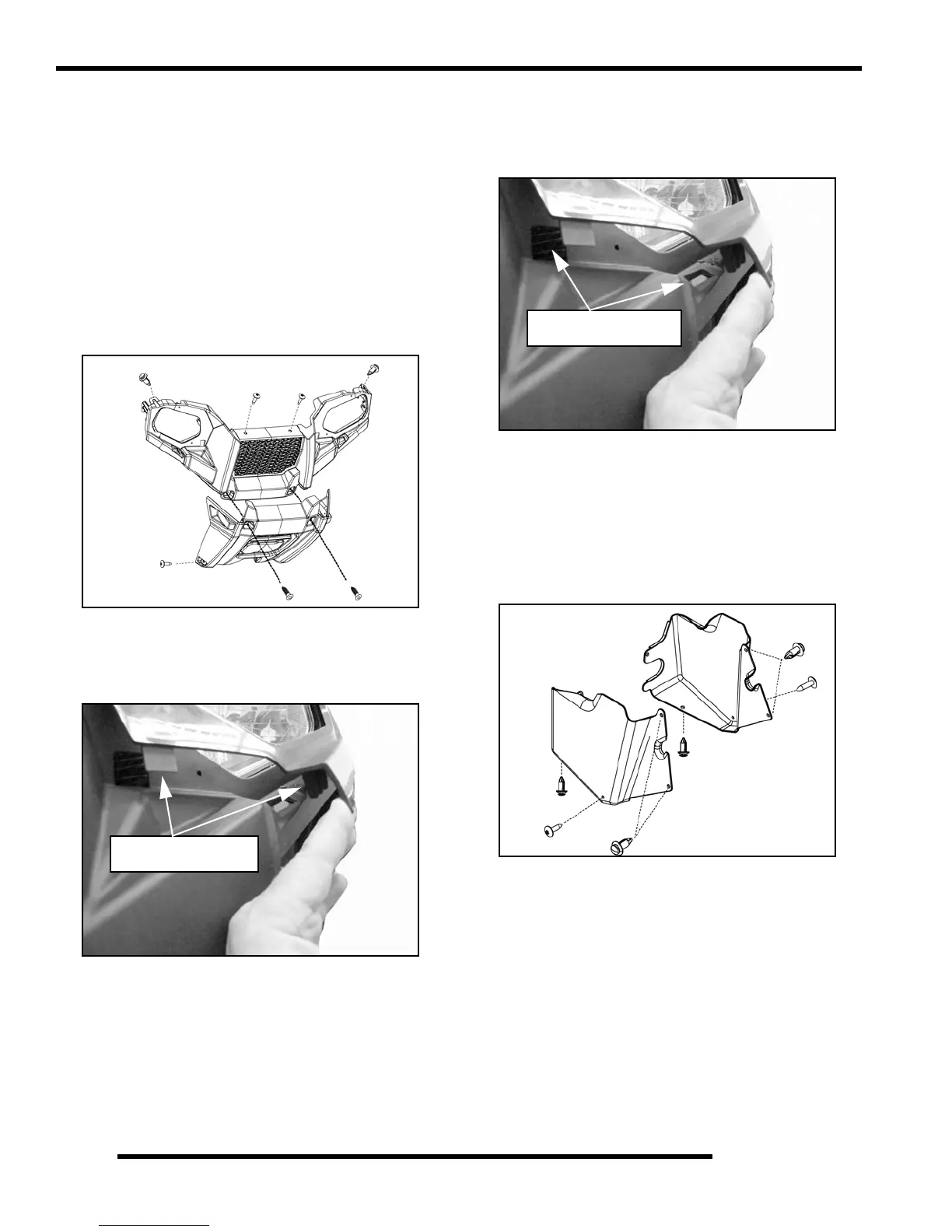

Front Bumper Removal / Installation

1. Remove front rack / storage box lid as outlined in this

chapter.

2. Disconnect head lamp connectors, leaving the bulb in

the head lamp housing.

3. Remove lower portion of the front bumper by

removing the 4 T27 bolts that attach it to the frame.

Pull bumper strait out to remove.

4. Remove the (2) plastic rivets that attach the upper

front bumper to the front fenders.

5. Remove to (2) T27 bolts that attache the upper front

bumper to the frame.

6. Disengaged the 4 plastic tabs from the front fender

that engage into the upper front bumper by gently

pressing down on the bumper and pulling up on the

front fender.

7. Remove the front bumper by gently the pulling the

lower portion of the bumper away from the vehicle

frame and sliding it down.

8. To reinstall the front bumper, reverse order of

removal. Be sure that the 4 plastic locking tabs of the

front fender are properly seated into the 4 slots of the

upper front bumper.

9. Torque the (6) T27 fasteners to 4-6 ft. lbs (6-8Nm).

Mud Guard Removal / Installation

1. Remove front bumper as outline in this chapter.

2. Locate the mud guards in the front wheel area.

3. Remove the (1) T27 bolt and the (3) plastic rivets per

side.

4. Remove the wheel well from the vehicle frame.

5. Reverse this procedure to reinstall the mud guards.

6. Torque the T27 fasteners to 4-6 ft. lbs (6-8Nm).

Disengage Tabs From

Front Fender

Align Tabs and Insert

Into Bumper Slots.
