7.46
FINAL DRIVE
9923412 - 2012 Sportsman 400/500 and EFI Tractor Service Manual
© Copyright 2011 Polaris Sales Inc.

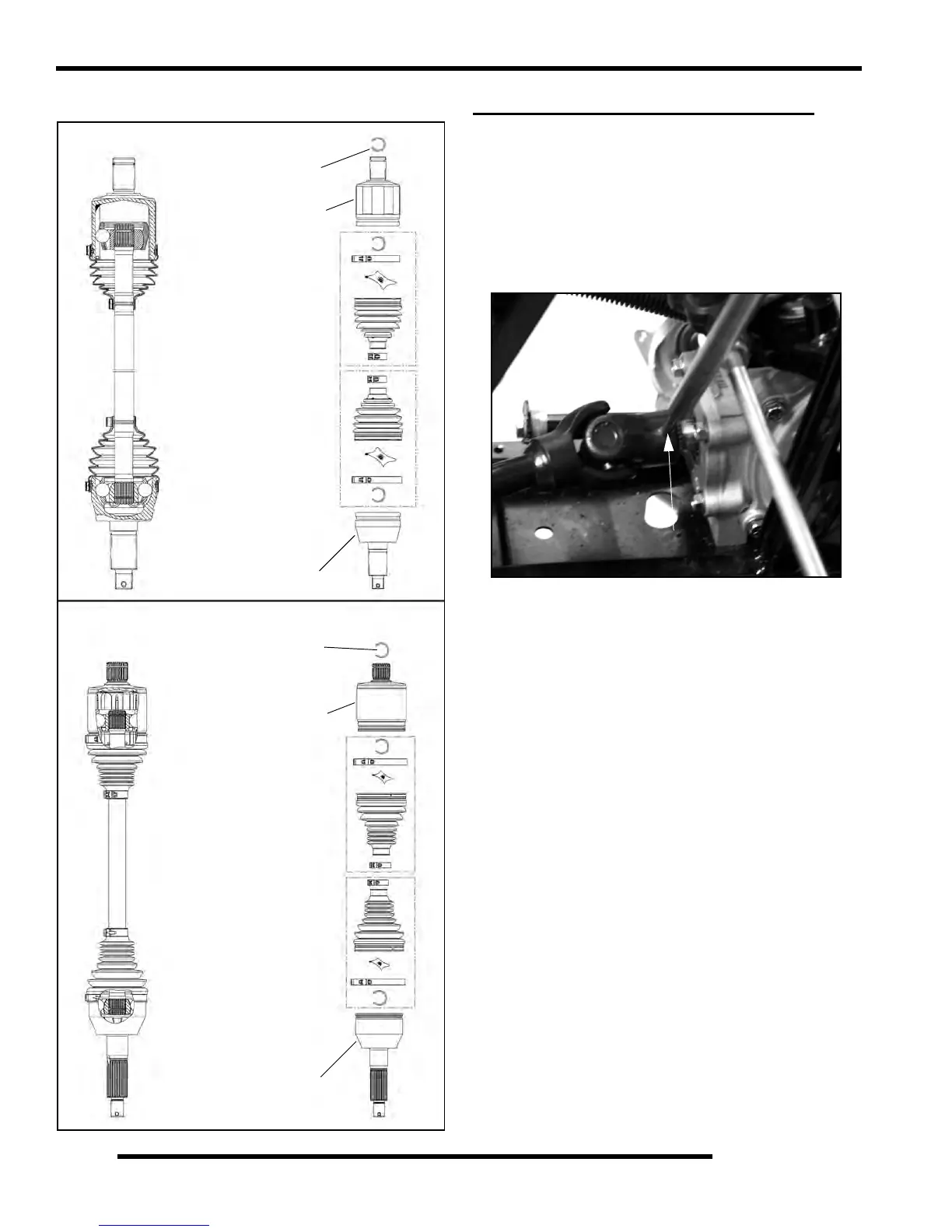

Drive Shaft Exploded Views
PROP SHAFT - FRONT OR REAR
Removal and Installation
1. Using Roll Pin Removal Tool (PN 2872608), remove
the roll pin from prop shaft at rear of housing (front
only) or transmission output shaft (rear only). Slide
prop shaft back and away from housing, then pull
sharply forward to remove from transmission shaft.
2. For installation, reverse the removal procedure.
NOTE: If removing rear propshaft, loosening and/or
remov
al of rear gearcase mounting bolts may be
required to gain necessary clearance for propshaft
removal.
REAR SHAFT
CV Joint
Plunging
Spring Ring
Gear Side
Boot Kit
Wheel Side
Boot Kit
Joint
FRONT SHAFT
CV Joint
Plunging
Spring Ring
Gear Side
Boot Kit
Wheel Side
Boot Kit
Joint
