CLUTCHING

9923412 - 2012 Sportsman 400/500 and EFI Tractor Service Manual

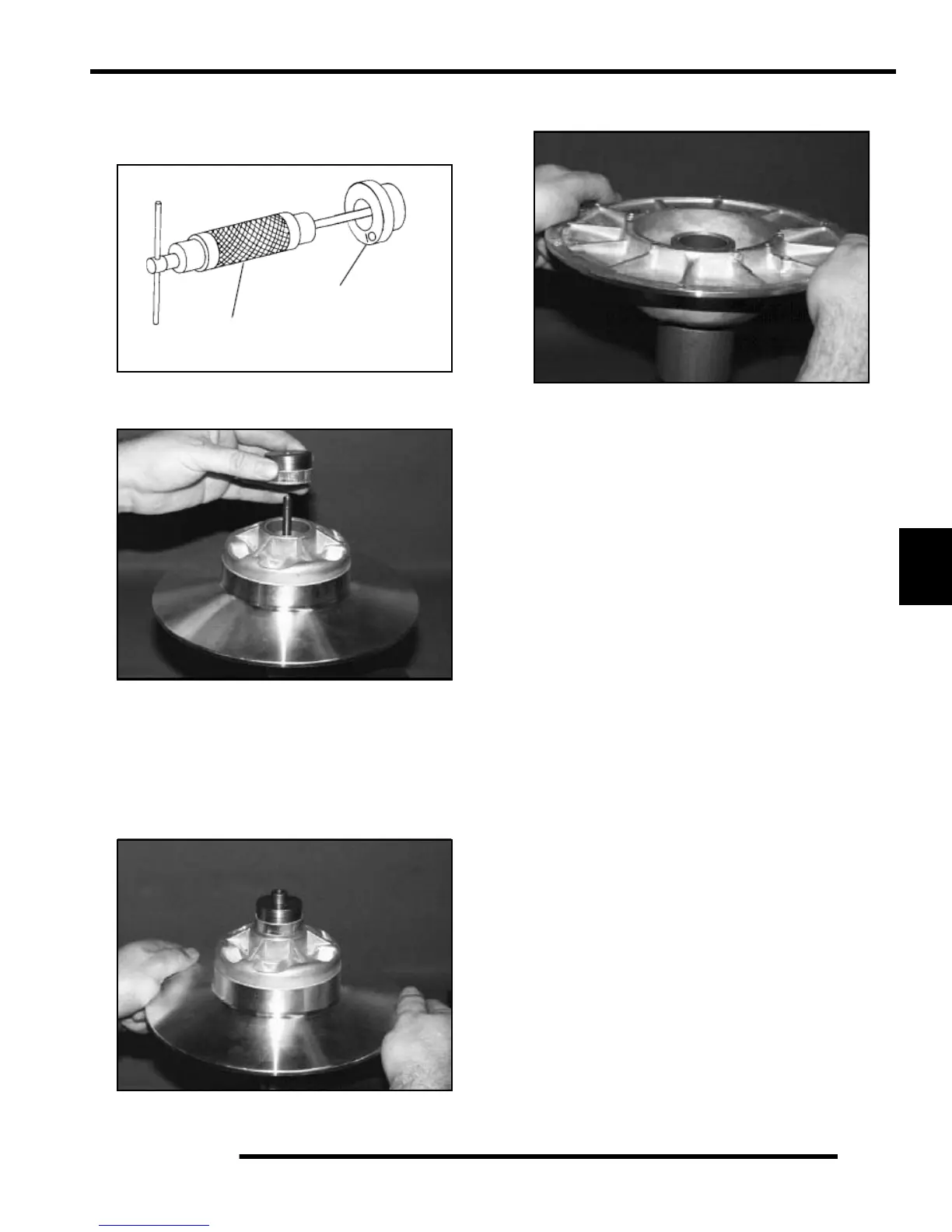

Moveable Sheave - Bushing Installation

1. Working from the top, insert Puller Adapter (#10)

(PN 5020633) onto the puller.

2. Start new bushing evenly in moveable sheave. Apply

Loctite™ 680 (PN 2870584) to the back side of new

bushing.

3. Install sheave onto puller with new bushing upward as

shown. Install Puller Adapter (#10) (PN 5020633).

4. Install nut onto puller rod and hand tighten against

installation tool.

5. Turn clutch sheave counterclockwise until bushing is

seated.

6. Remove nut from puller rod and set aside.

7. Remove installation tool and clutch sheave from

puller.

8. Repeat installation procedure for other moveable

bushing.

9. Reinstall ramp buttons and screws with locking agent

on the threads. Tighten securely.

Piston Pin Puller

(PN 2870386)

Number Two Puller

Adapter (#10)
