6.36
CLUTCHING
9923412 - 2012 Sportsman 400/500 and EFI Tractor Service Manual
© Copyright 2011 Polaris Sales Inc.

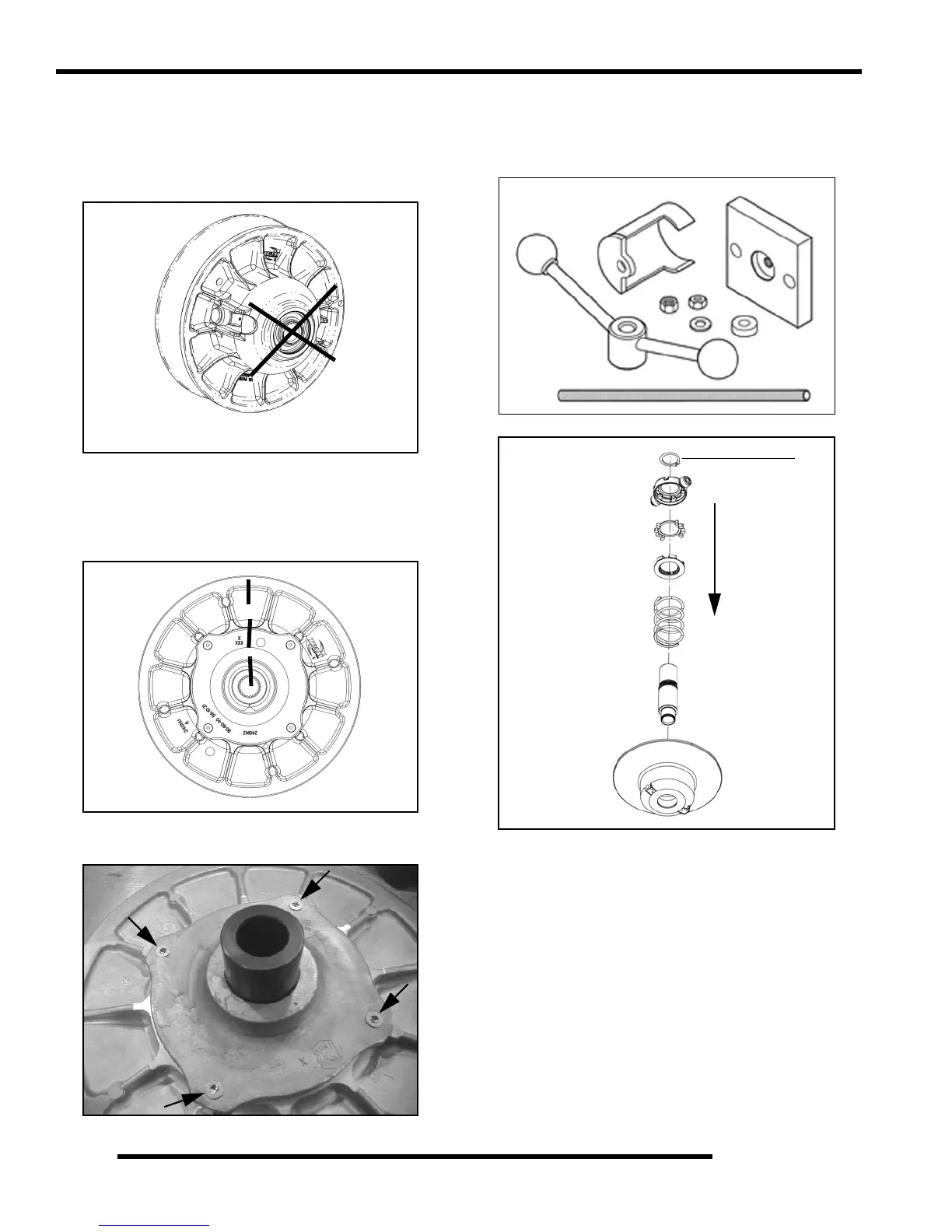

Clutch Disassembly
1. Remove driven clutch from the transmission input
shaft. Do not attempt disassembly of the driven clutch
from the outside snap ring. The driven clutch must be
disassembled from the helix side.
2. It is important to mark the position of the shaft, cam
cover, and sheave before disassembly or use the X’s
on the components for reference. This will aid in
reassembly and helps to maintain clutch balance after
reassembly.
3. Remove the four screws that secure the cam (helix)
assembly using a T25 Torx driver.
4. Place the clutch into the Universal Clutch Compressor
Tool PU-50518. Press down on the top of the spider
assembly, pushing the spider onto the shaft. Remove
snap ring (A) and slowly release the assembly.
Do not disassemble from this side
