10.15
ELECTRICAL
10
9923412 - 2012 Sportsman 400/500 and EFI Tractor Service Manual
© Copyright 2011 Polaris Sales Inc.

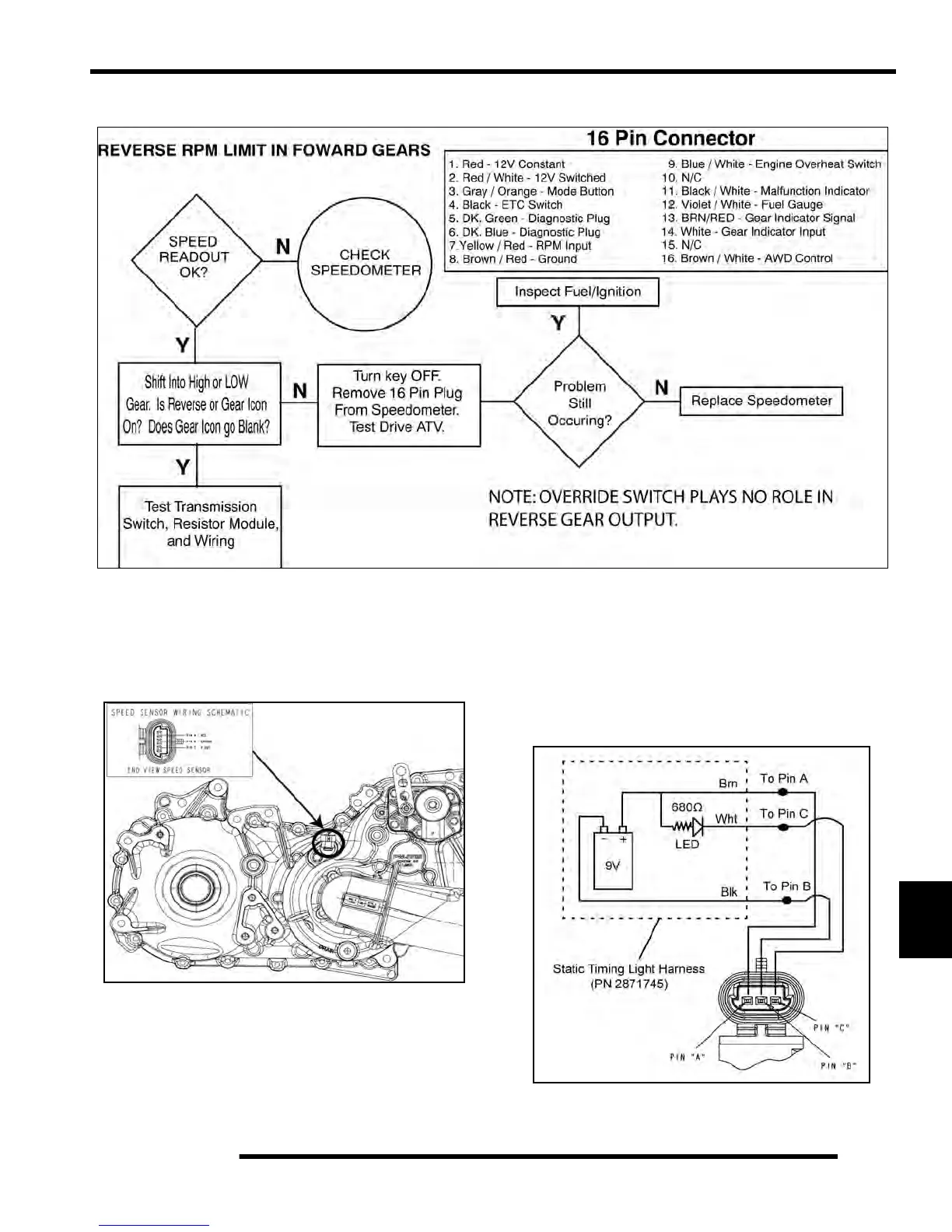

TEST 5 - Reverse Speed Limiter / TEST 6 - Speed Sensor
TEST 6 - Vehicle Speed Sensor
Speed Sensor Location
The speed sensor is located on the RH transmission case
and can be accessed through the rear RH wheel well area.
Speed Sensor Testing
Special Tools Required:
Static Timing Light Harness (PN 2871745)
Hall Sensor Probe Harness (PN 2460761)
1. Disconnect the 3 wire harness from the speed sensor
a
nd remove the sensor from the transmission.
2. Connect the wires from the Static Timing Light
Ha
rness to the sensor 3 pin connector using the Hall
Sensor Probe Harness (PN 2460761).
3. Pass a screwdriver back and forth in front of the
se
nsor tip.
4. Be sure connections are good and 9V battery is in
g
ood condition. If the light flashes, the sensor is good.
To Next Page
