Legend Pro™ System User Manual Version 7
Proprietary Information of Pollogen a company of Lumenis 17
7.1.5 Applicator No. 1:

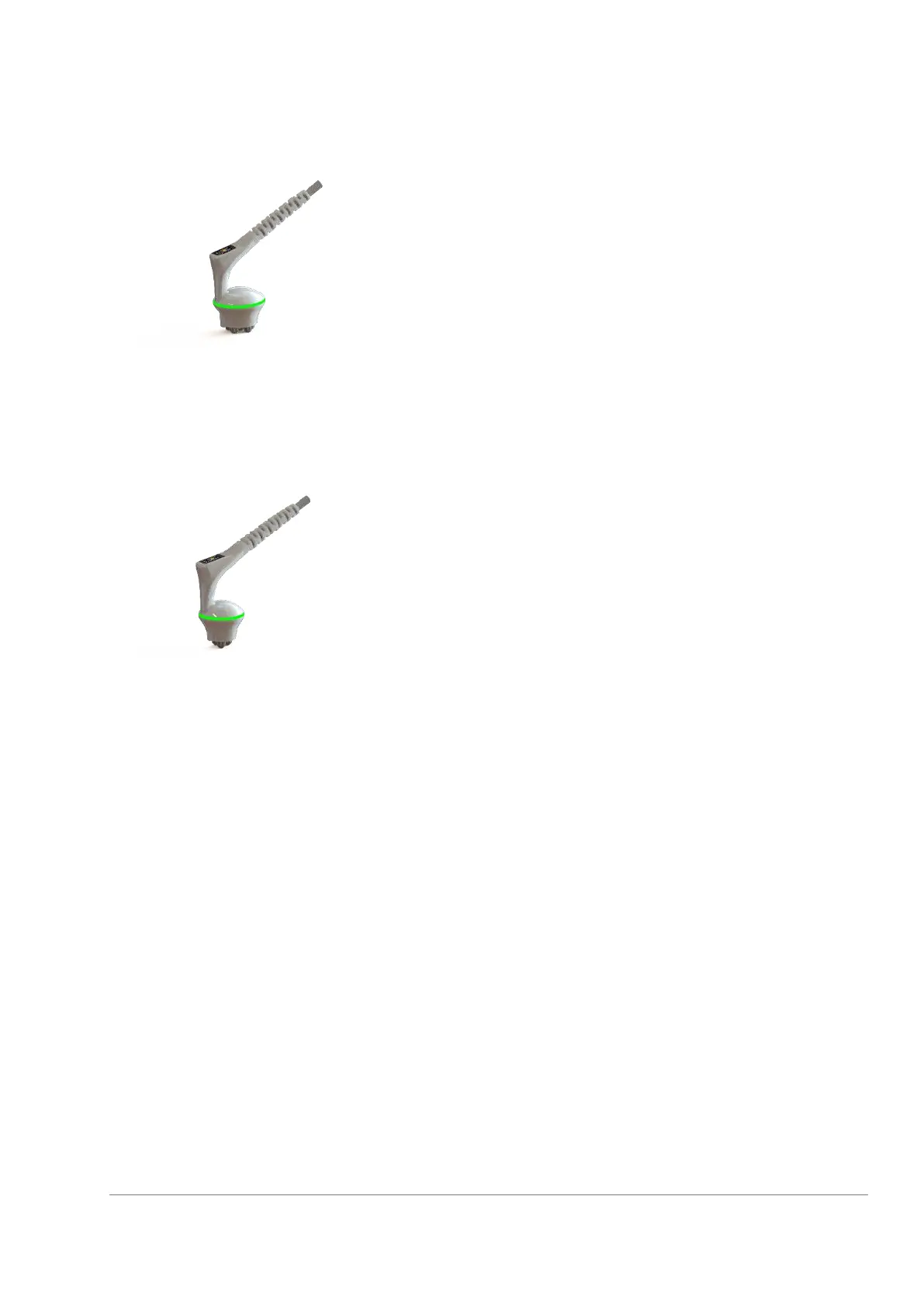

Figure 10: Applicator No.1
Applicator No. 1(Figure 10: Applicator No.1) is
connected to the main unit by a cable containing
electrical wiring and a connector, also consisting
of a plastic body with an integrated electronic
system, 6 electrodes, IR sensor temperature, LCD
screen and indication light guide ring. When not in
use, the applicator should be stored in its holder.
7.1.6 Applicator No. 2:
Figure 11: Applicator No.2
Applicator No.2Figure 11: Applicator No.28) is
connected to the main unit by a cable containing
electrical wiring and a connector, also consisting
of a plastic body with integrated electronic
system, 3 electrodes IR sensor temperature, LCD
screen and indication light guide ring. When not in
use, the applicator should be stored in its holder.
7.1.7 Applicator 1 and 2 indicator LED screen
Applicators no.1 and 2 are equipped with IR sensors measuring the skin temperature. During
treatment mode when the foot switch is pressed the measured temperature is indicated both on
the LED screen located on the applicator and in the GUI. The temperature will display from 36֯
C. A visual bar indicating temperature level from low to high is visible within user interface
together with numerical indication.
The built-in IR temperature sensor is being used only to verify that the recommended temperature
(endpoint) of the treated area is being achieved and maintained.
The integrated IR temperature sensor should be used as an indicator only and cannot replace an
external thermometer. The external Thermometer should be used during the entire procedure.
Applicator no.3 is connected to the main unit by
a cable containing electrical wiring and a
connector, also consisting of a plastic body with
integrated electronic system, 3 electrodes and
