THE ART OF WELDING
P6 HW
26-100 PN-0110008 Rev. 12
Power supply
Notebook P.C.
Printer (optional)
Ethernet cable RJ45
Acquisition module
240 V
AC

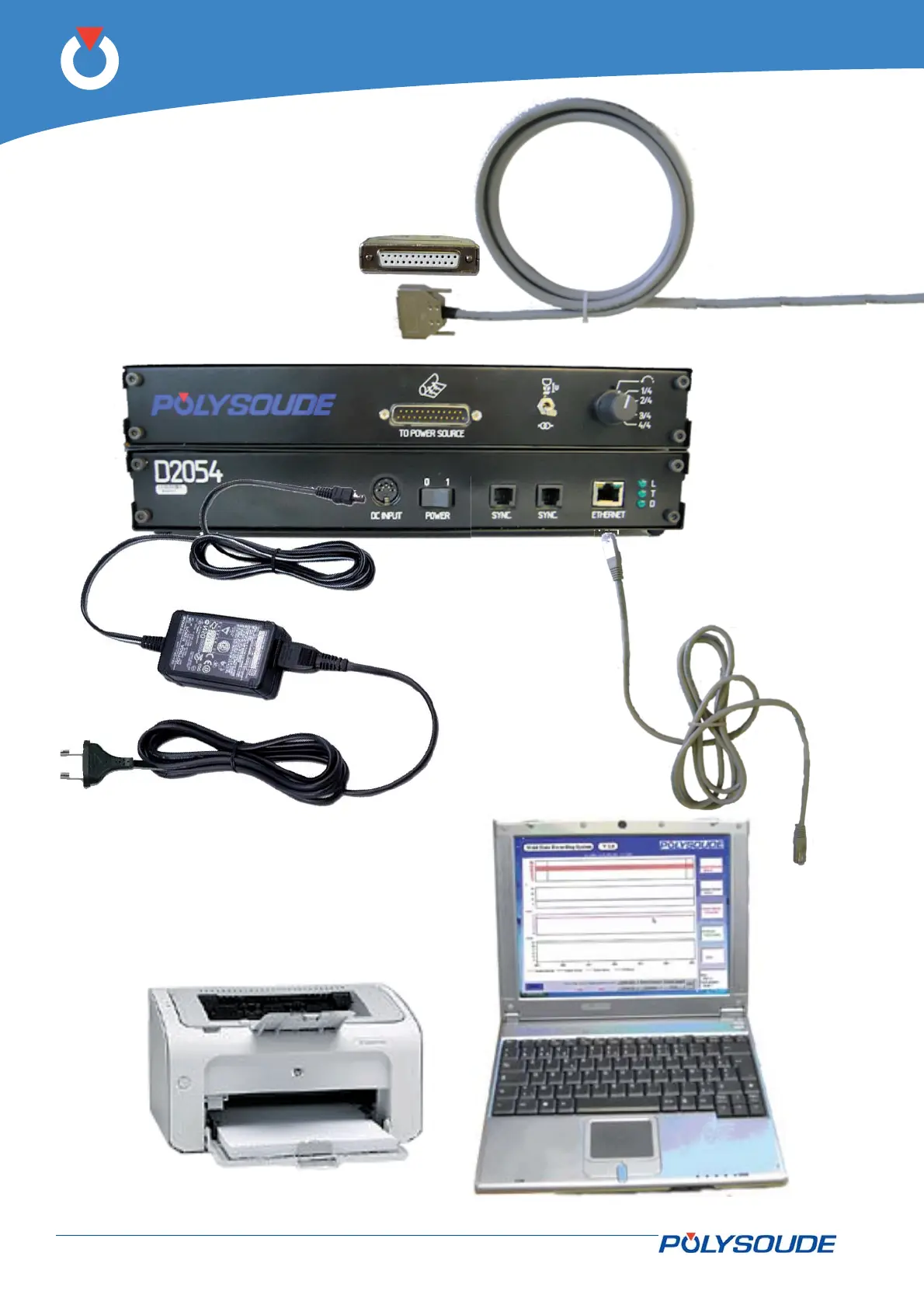

Connecting the acquisition module4. 2. 5.
