Connection of a manual torch with double command4. 3. 9.
Connection of the electrode
current cable
Connect the current cable on the “-” terminal with the quick connector, locking it by rotation to the right.
Earth cable connection
Connect the earth cable to the “+” terminal on the connector panel. The terminal is surrounded by a red ring.
Connection is made with a quick-fi t connector, locked by turning clockwise. Connect the other end of the cable
to the workpiece, as close as possible to the joint to be welded, in an area free from grease and oxide.
Connection of the trigger control
Connect the trigger control cable to the “manual torch” terminal (connecter FA 5) of the connection panel. Use
the adapter for manual torch 0023000901.
Connection of the cooling circuit (option)
Connection is made by 2 quick couplings on the front panel (symbols
and ).
Connection of the torch shielding gas
Connection is made with a quick push-pull coupling on the connector panel (symbol
1
).

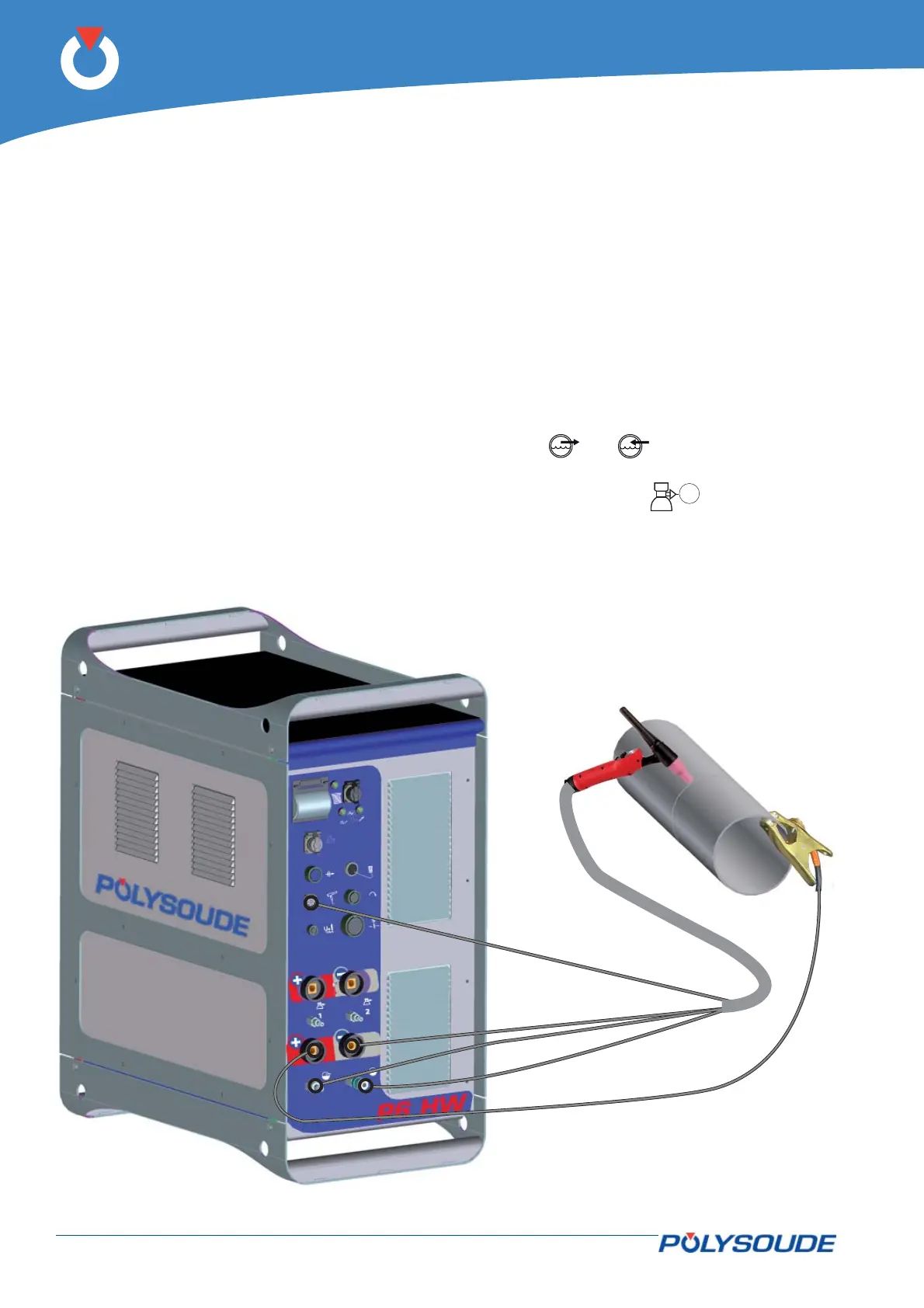

Fig. 4.15 - Connection of a manual torch
