Connection of a gas cooled closed chamber welding head4. 3. 5.
Polysoude UHP heads belong to this group.
Connection of the electrode current cable
Connect the current cable on the “-” terminal with the quick connector, locking it by rotation to the right. This
terminal is not marked by a colour.
Earth cable connection
Connect the earth cable to the “+” terminal on the connector panel. The terminal is surrounded by a red ring.
Connection is made with a quick-fi t connector, locked by turning clockwise. The cable end is marked red.
Connection of the rotation motor cable
Connection is made on the connector panel at connector (symbol
). Make sure that the securing ring is
properly tightened, otherwise the system may not function correctly.
Connection of the torch shielding gas
Connection is made with a quick push-pull coupling on the connector panel.
(Symbol
1
).

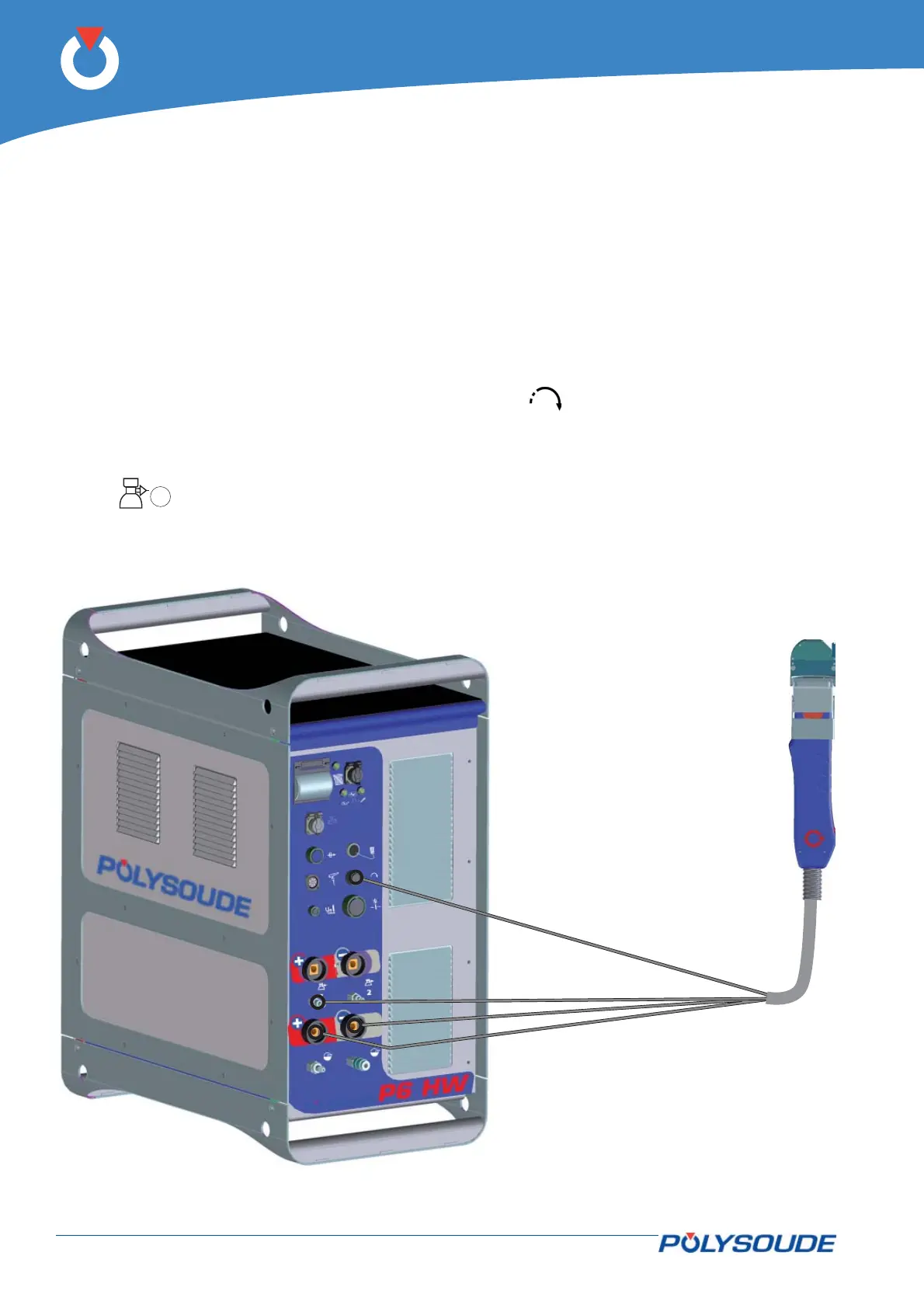

Fig. 4.11 - Connection of a gas cooled closed chamber welding head
