PN-0110008 Rev. 12 69-100
Cooling circuit6. 1. 3.
The cooling circuit is fi tted with a liquid temperature
safety device which which stops the weld cycle stop
and prevents cycle start-up from 80°C.

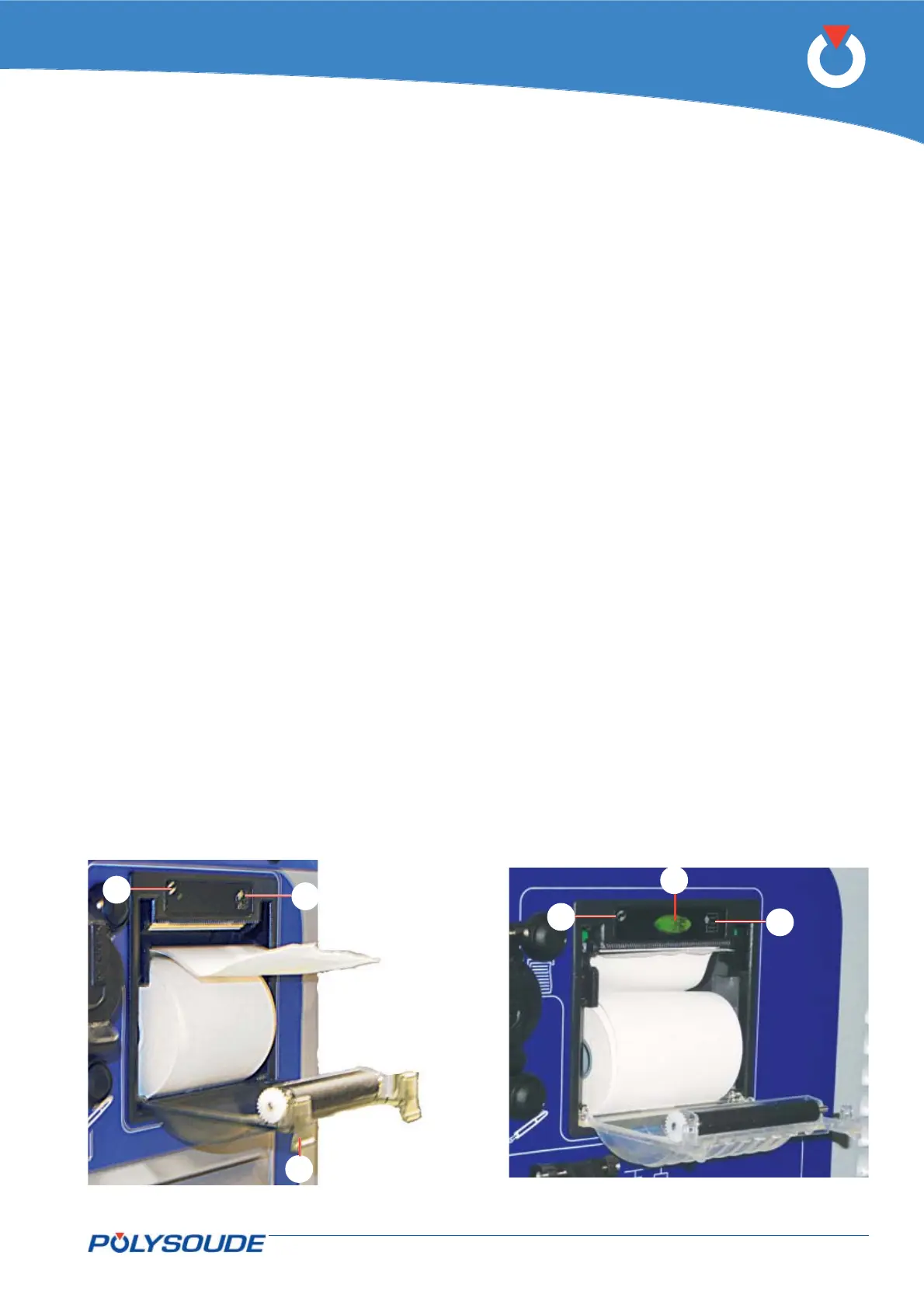

Fig. 6.1 - Printers
Printer6. 1. 4.
Changing the printer paper.
To change paper the power source must be switched
on. Depending on the model of printer, change the
roll of thermal paper either by pulling down the two
tabs of the cover (Fig. 6.1 - 1) or by pressing the
button (Fig. 6.1 - 4). Take out the empty roll and
insert the new one so that the curve of the paper is
at the inside face of the printer and the start of the
paper upwards.
Unwind enough paper so that after closing the cover
a strip of paper appears at the outside.
To feed paper, push the button (Fig. 6.1 - 4).
The green indicator light (Fig. 6.1 - 6) located to the
right is continually lit when the printer is operational.
It fl ashes if there is a defect or no paper.
