THE ART OF WELDING
P6 HW
BT 13
BT 16
BT 14
60-100 PN-0110008 Rev. 12
Induced stoppage5. 2. 6.
Manual weld cycle stop with downslope
The downslope sequence determined in the program
can be started at any moment during weld cycle
execution by pressing BT 13 on the remote control
unit. This procedure prevents the workpiece from
being damaged during welding as far as possible.
The message “Manual downslope” is displayed on the
remote control unit.
Immediate manual stop
If BT 16 on the remote control unit is pressed, the
arc is cut and all movements are stopped immedi-
ately. The post-gas fl ow is maintained during the
programmed time T25. The message ‘Manual stop’
is displayed on the remote control unit.
Using a manual torch
When you use a manual torch, and if the torch control
socket has been connected up as indicated in section
4.3.7, the equipment operates in a special way. A
program from the set of special WP for manual torch-
es must be loaded. This program disables all wire
feed, AVC, Oscillation and rotation movements.
Provided that the current selected in the welding
procedure is “Manual Pulsed”, pressing on the torch
manual On button causes an arc to be struck. The
intensity of the ignition current is also the intensity
of the weld current. If the button is released, the high
current (I22) is applied. Another press of the button
switches to the background current (I23). Pressing
again changes to high current and so on. The cycle
is stopped either by pressing the downslope button,
or pressing both buttons at the same time will stop
the cycle immediately.

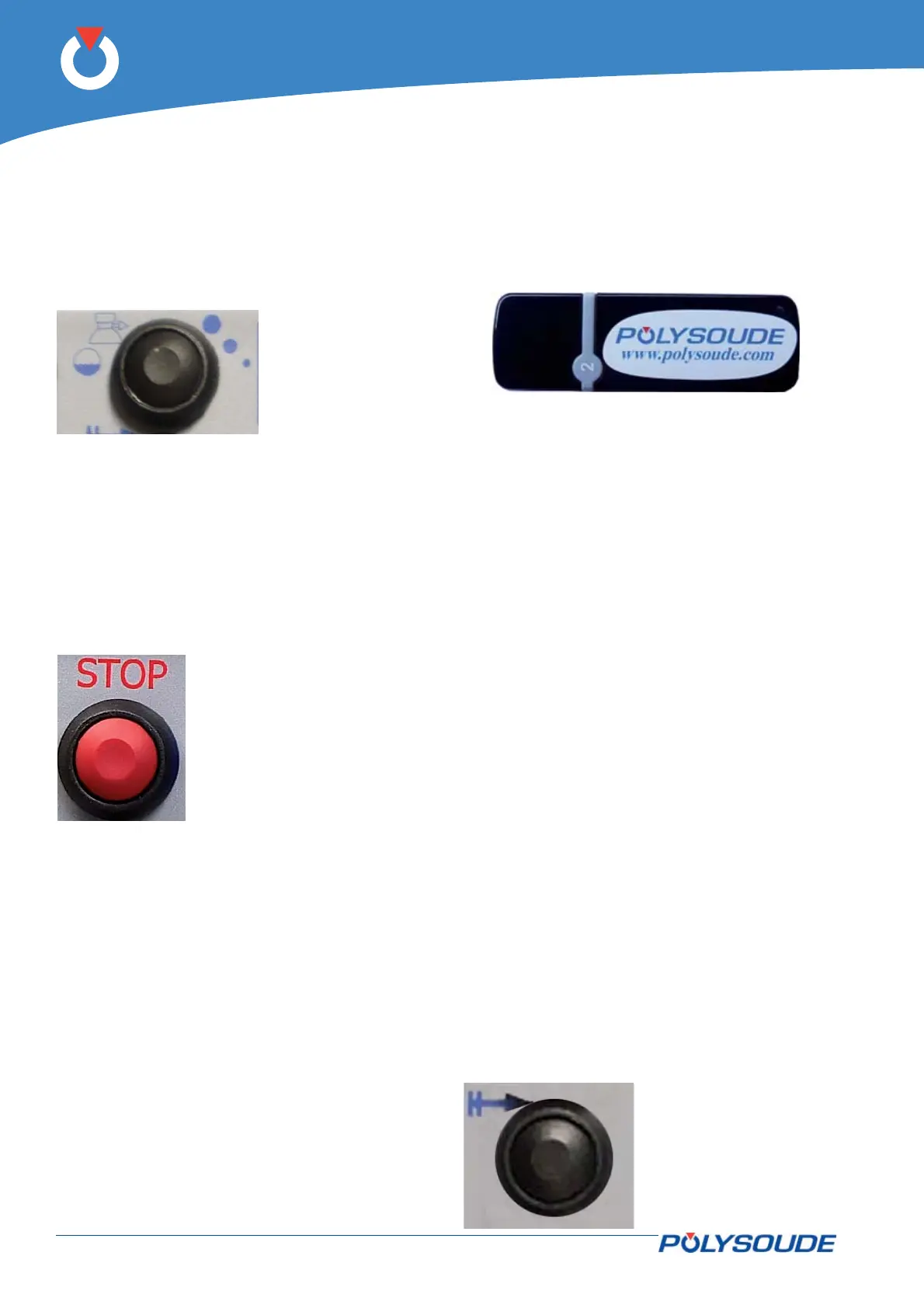

Fig. 5.11 - Pushbutton to command stoppage with
slope down
Fig. 5.12 - Pushbutton to com-
mand immediate stop-
page
Use of the USB key5. 2. 7.
When the welding procedure is exported for the fi rst
time, a “Polysoude” folder is created in the root of
the USB key. It is necessary to create it in the root of
the Polysoude key (x:\Polysoude).
Fig. 5.13 - Polysoude USB key
Start cycle with restart5. 2. 8.
Restart allows you to restart a weld when a cycle was
stopped under the following conditions:
Stop caused by manual slope-down•
Stop caused by a carrying out a «Stop»•
Stop caused by the appearance of a fault•
It is not possible to carry out a restart in the follow-
ing cases:
The previous cycle fi nished correctly•
The restart is requested outside the welding area •
(0 > electrode position > N20)
Rotation had not started during the previous cycle•
After changing a machine setting (WP setting, •
program setting, etc.)
After changing a program or WP.•
After a change via the GUI•
The start cycle with recovery can resume welding
parameter values corresponding to the position of the
electrode. Adjusting the position of the electrode is
made via the manual controls on the remote before
the start of cycle start with recovery.
During a restart:
The timer is reset to zero•
The pulse counter is set to the position at which •
the start is requested
The touch workpiece is rerun•
Pre-winding is not rerun.•
Fig. 5.14 - Push button
start cycle with
restart
