Setting to work4. 3.
Remotes control on board4. 3. 1.
When using the remote control board on TS, MW and hand torches,
must keep pressing the button for one second that action be taken into
account
Remote control unit connection4. 3. 2.
The wire feed unit is connected at the front connection panel of the P6 HW by a screw connector. If the remote
control is not connected, a power source fi tted with the emergency stop option cannot be powered on.

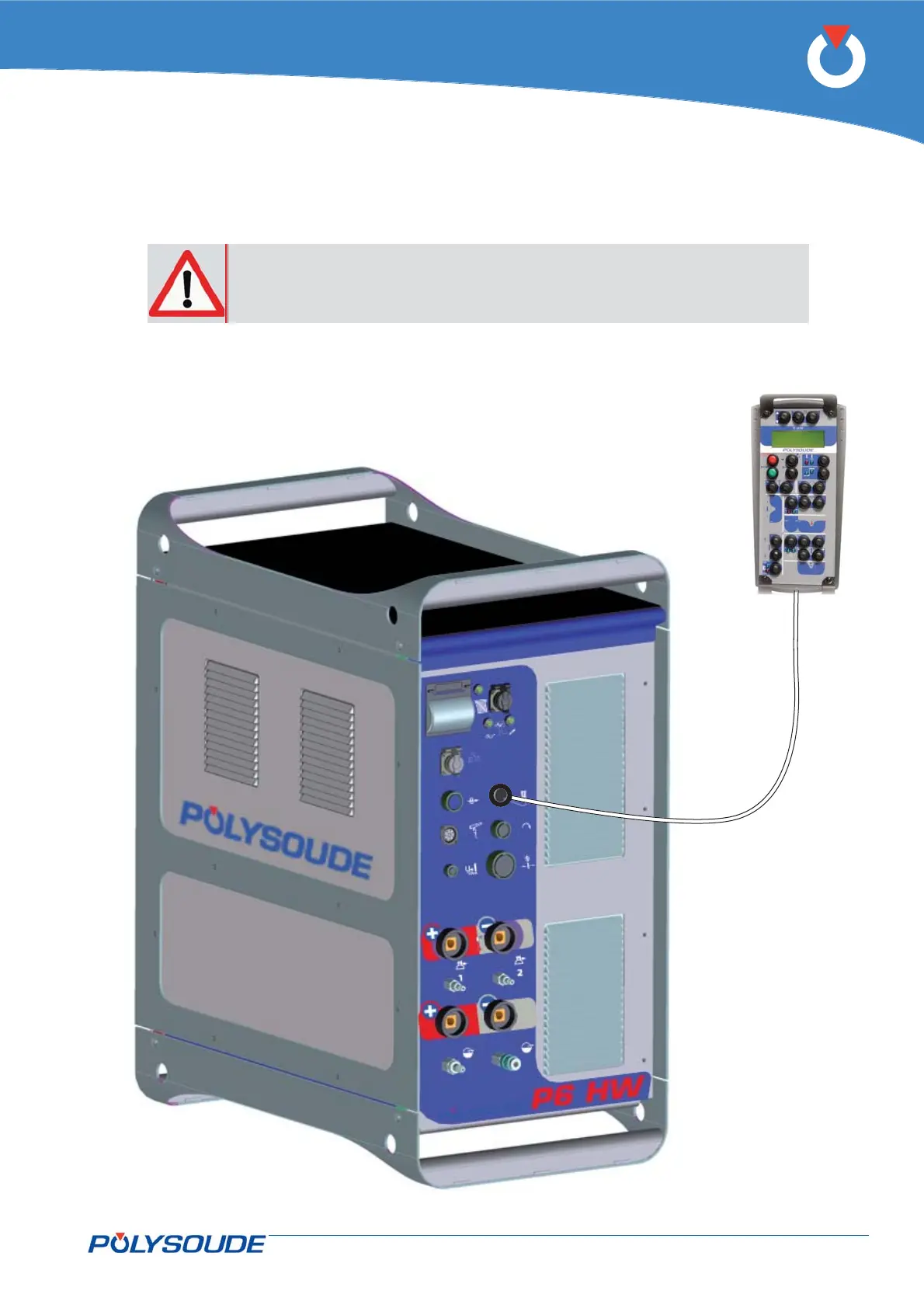

Fig. 4.8 - Connection of the remote control unit to the P6 HW power source
