Potter PFC-6800 - Page 115




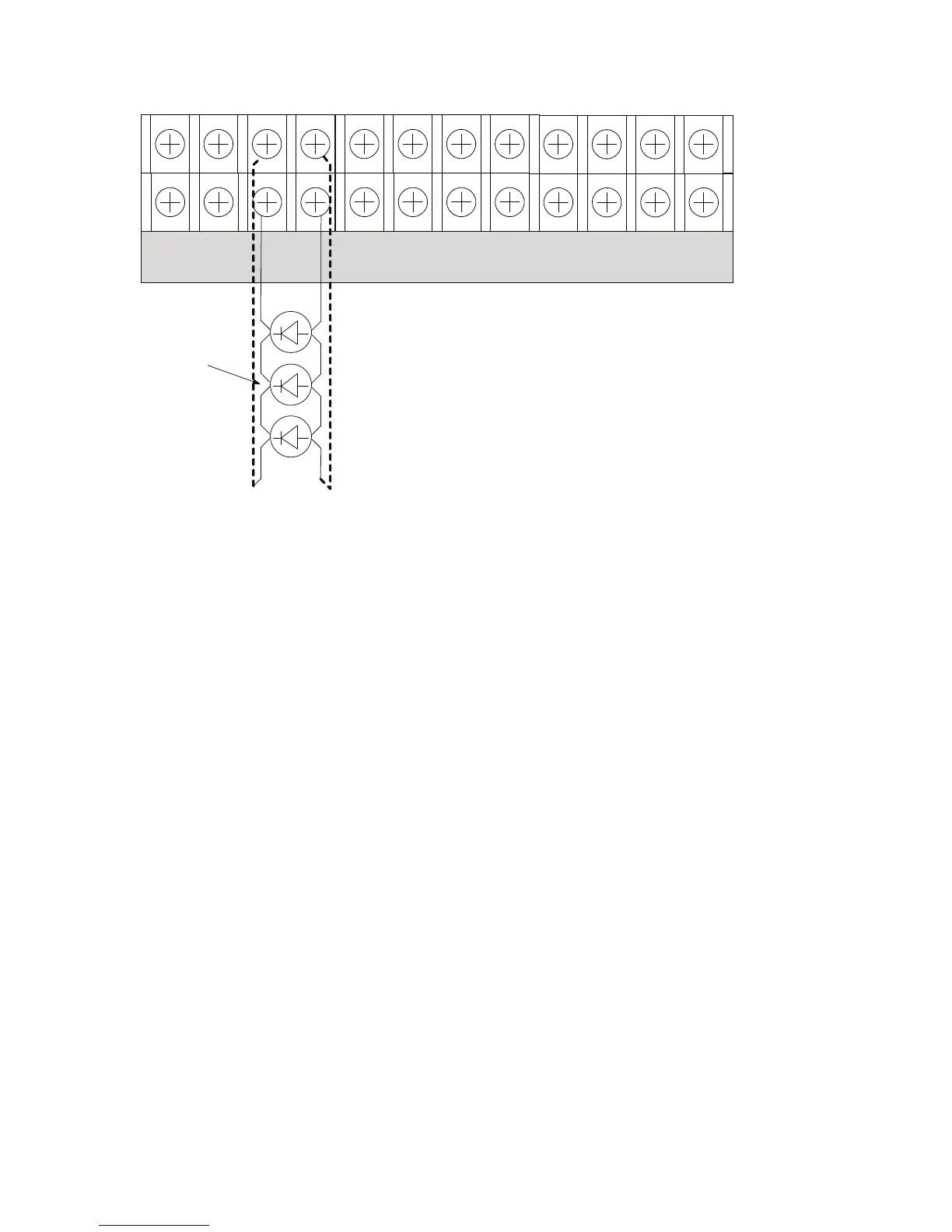

PSN-1000 / PSN-1000 (E) Class A NAC Wiring ExampleFigure 151.
- I1 + - NAC 1 + - NAC 5 + - NAC 3 +
-
+ A B
Notification
Appliance
- I2 + - NAC 2 + - NAC 4 + - NAC 6 +
-
+ A B
P-LINK
DWG #602-25
