Potter PFC-6800 - P-Link Addresses

3-33


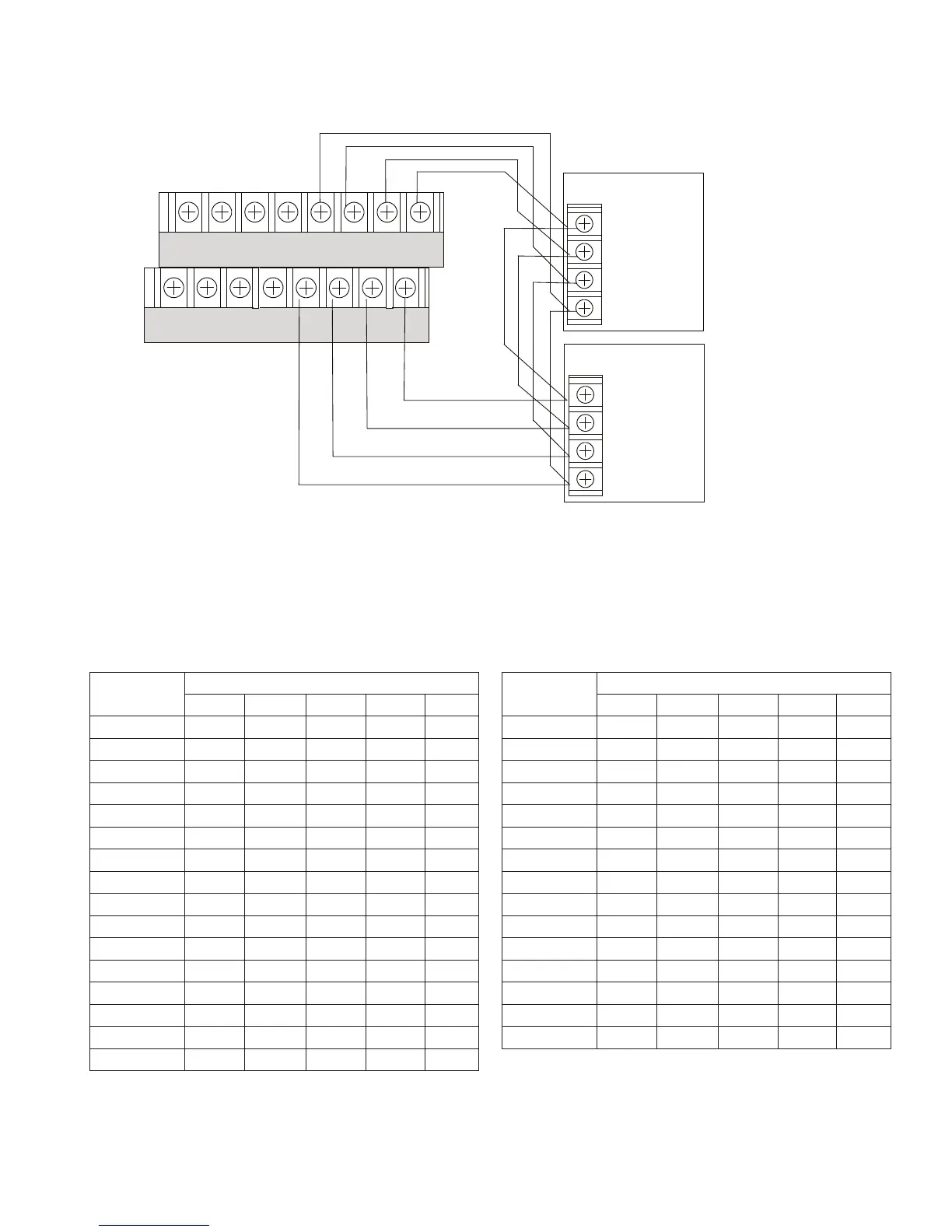

Example of P-Link Class A Wiring Requiring a CA-6500Figure 32.
Note

P-Link Addresses


Note


Annunciator
Address
Dip Switch Settings
SW-1 SW-2 SW-3 SW-4 SW-5
1 On    
2  On   
3 On On   
4   On  
5 On  On  
6  On On  
7 On On On  
8    On 
 On   On 
10  On  On 
11 On On  On 
12   On On 
13 On  On On 
14  On On On 
15 On On On On 
16     On
Annunciator
Address
Dip Switch Settings
SW-1 SW-2 SW-3 SW-4 SW-5
17 On    On
18  On   On
 On On   On
20   On  On
21 On  On  On
22  On On  On
23 On On On  On
24    On On
25 On   On On
26  On  On On
27 On On  On On
28   On On On
 On  On On On
30  On On On On
31 On On On On On
P-LINK 2
- + A B
CA-6500
Connection
P-LINK 1
- + A B
- + A B
Expansion
Device
- + A B
Expansion
Device
P-LINK 2
- + A B
Panel
Connection
P-LINK 1
- + A B
DWG #602-12
