Potter PFC-6800 - SLCE-127 Installation

3-42

Setting Addresses
dip switch S1
(Refer to the "P-Link Addresses" table shown earlier in this section for DIP switch programming.)

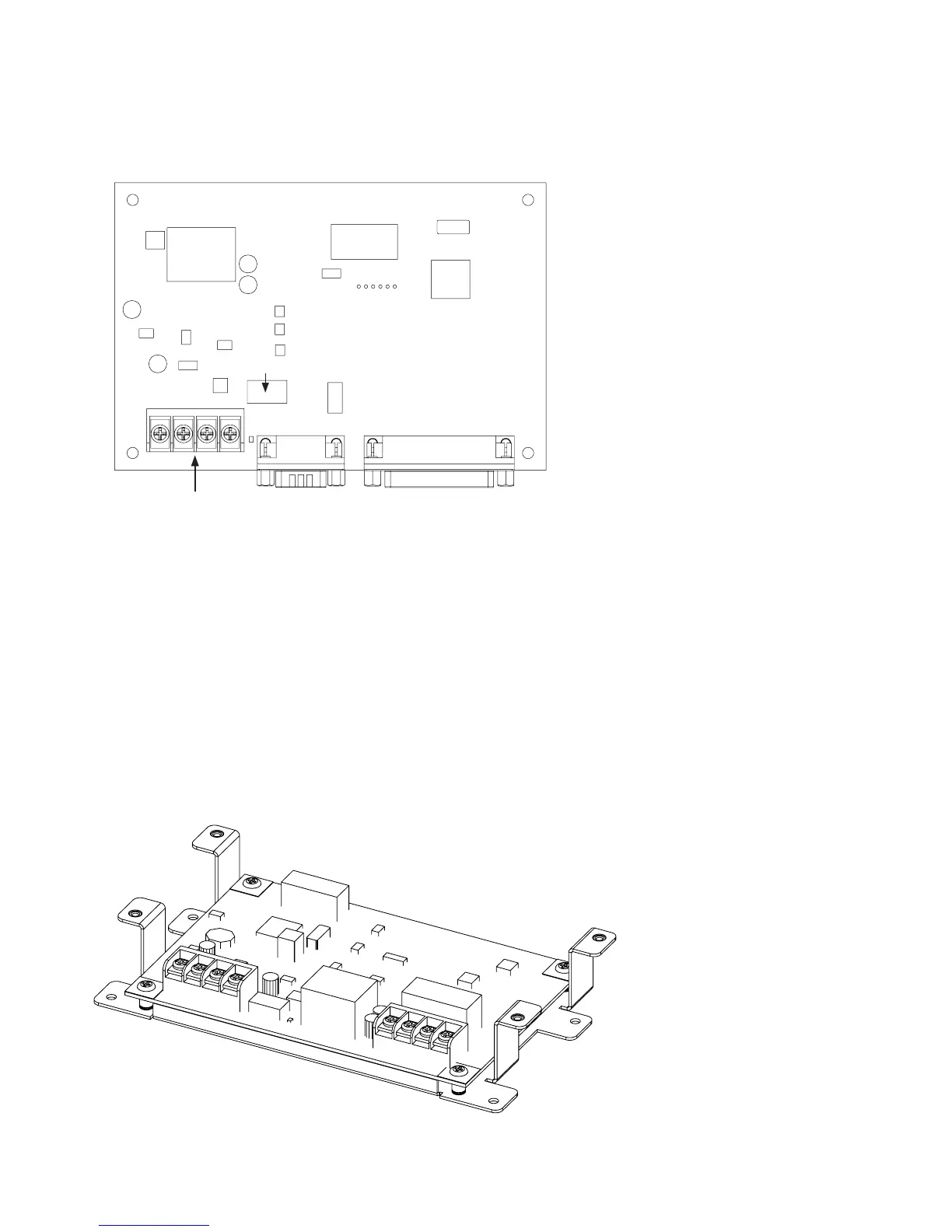

SPG-1000 Back Panel View Showing Dip Switch LocationFigure 52.
SLCE-127 Installation



SLCE-127 Wiring
y
y
y


Example of the SLCE-127Figure 53.
DWG #602-16
P-Link
Connections
Dip Switches
DWG #608-25
S1
