CA-6500 Class A Expander Installation



Notes:
1.
2.

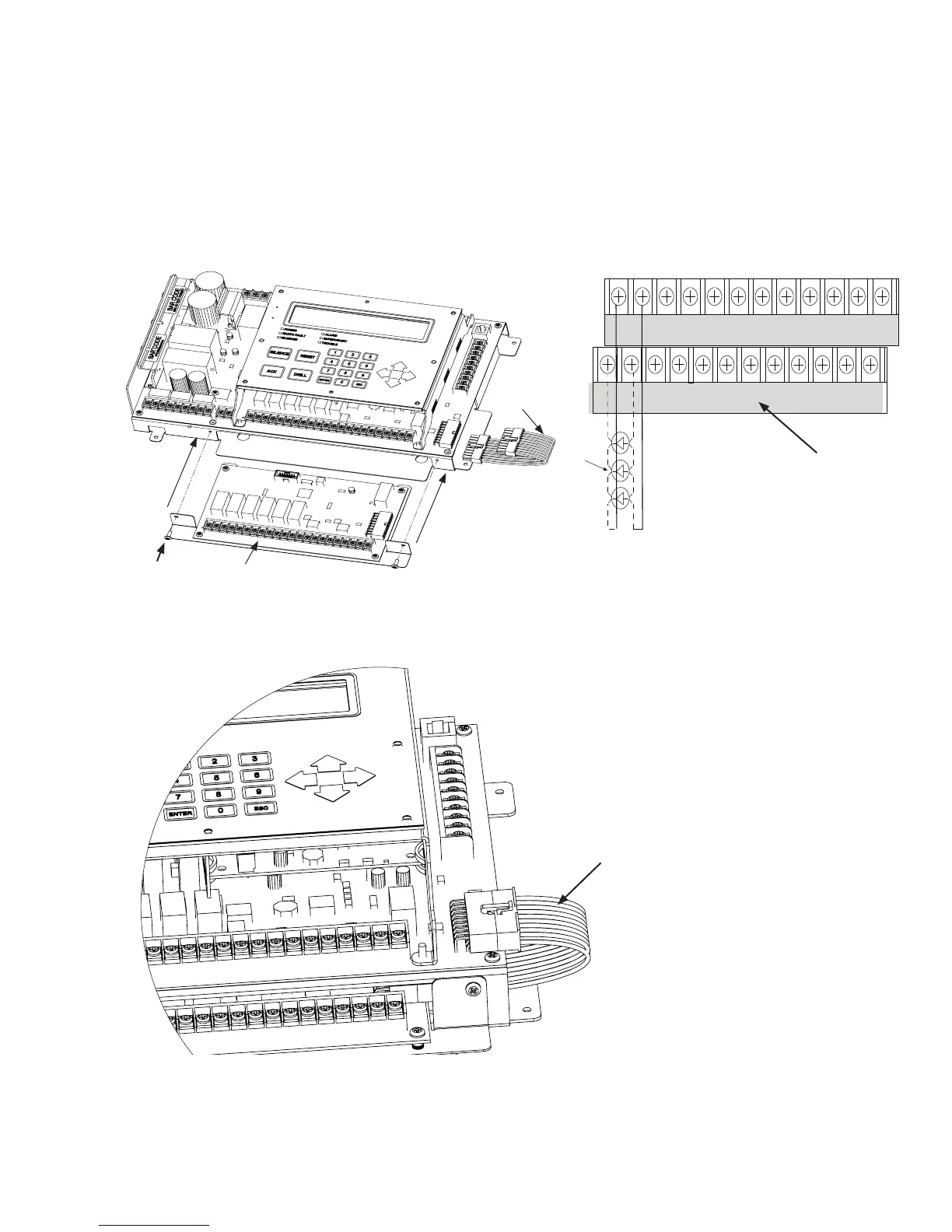

Examples of Installing and Wiring a Class A Expander CardFigure 29.
CA-6500 Installation Showing the CA-6500 Ribbon ConnectionFigure 30.
DETAIL B
SCALE 1 : 1
NAC 1 NAC 2
- + - +
Notification
Appliance
NAC 1 NAC 2
- + - +
NAC 3 NAC 4
- + - +
NAC 5 NAC 6
- + - +
NAC 3 NAC 4
- + - +
NAC 5 NAC 6
- + - +
DWG #602-5
CA-6500
Class A Expander
#6-32 x 1/4
screws
DWG #602-10
Slides in guides under main board
CA-6500
Ribbon Cable
CA-6500 Ribbon Cable
DWG #602-13
CA-6500 card
