Potter PFC-6800 - Page 42

3-36

50 programmable LED outputs P1-P5
system LEDsPZT control outputsP6

DRV-50 "P1-P5" and "P6" ConnectorsFigure 38.
4 programmable dry-contact inputsP7

panel.
DRV-50 "P7" Dry-Contact inputsFigure 39.
Note



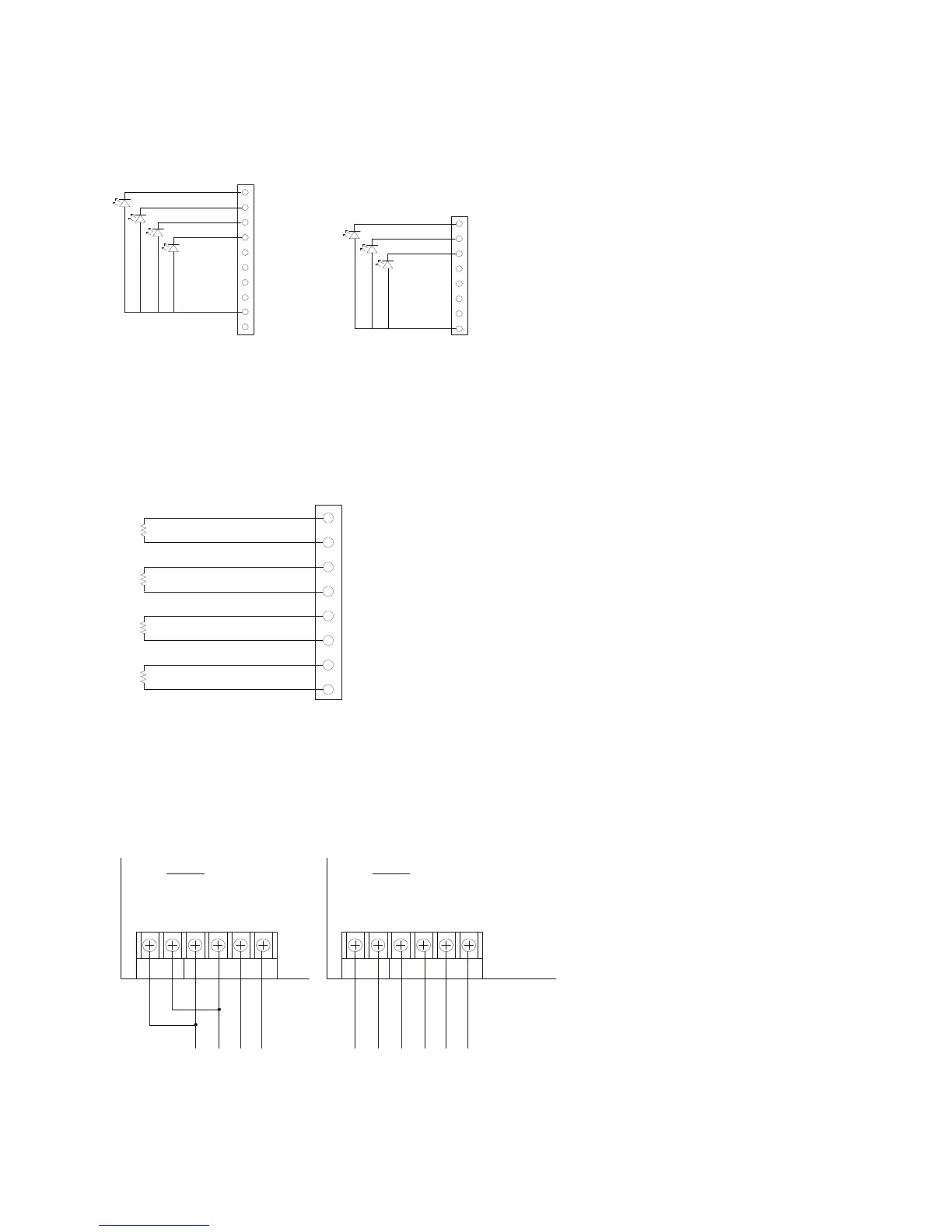

Examples of Wiring DRV-50 from Control Panel or Auxiliary Power SupplyFigure 40.
TRB
SUP
ALR
SIL
EARTH
PWR
PZT-
LED+
LED1
LED10
LED+
LED+
Programmable LED
Connectors P1-P5
System LED and PZT
Connector P6
DWG #608-8
LED PWR P -Link
- + - + A B
P-Link from
control panel
Example:
Powered by
control panel
LED PWR P -Link
- + - + A B
P-Link from
control panel
Example:
Powered by
aux supply
Power from
auxiliary
supply
DWG #608-6
Dry Contact Inputs (P7)
I1 I2 I3 I4
5.1k
5.1k
5.1k
5.1k
P7
DWG #608-9





