DIMENSIONS

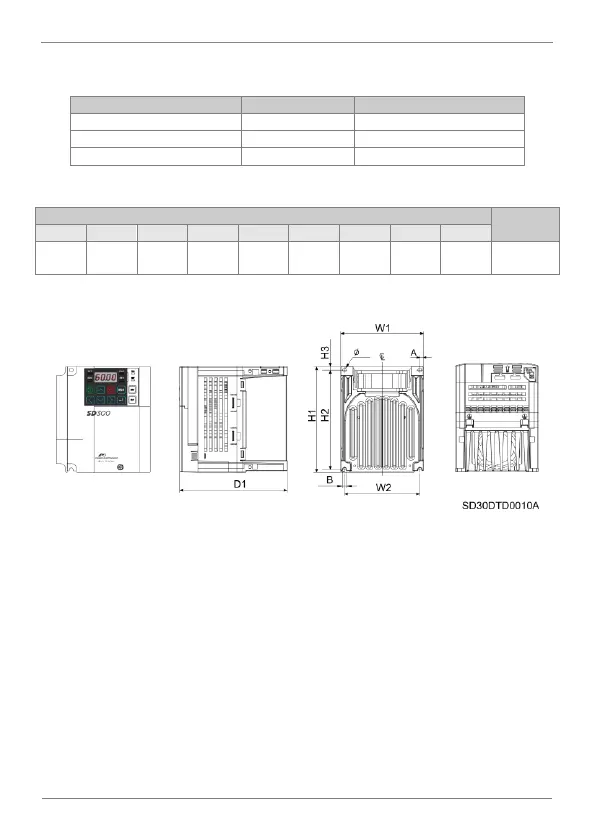

Frame 3N Dimensions
INPUT VOLTAGE
PHASES
EQUIPMENT
200~240[V]
1
SD300612
200~240[V]
3
SD300922
380~480[V]
3
SD300542
DIMENSIONS [mm/inch]
WEIGHT
(kg/lb)
W1
W2
H1
H2
H3
D1
A
B
Ø
100
(3.9”)
91
(9.6”)
128
(5”)
120
(4.7”)
4.5
(0.2”)
130
(5.1’’)
4.5
(0.2”)
4.5
(0.2”)
4.5
(0.2”)
1.5 (3.3lb)
Frame 3N dimensions
