Power Electronics SD300 Series User Manual

POWER ELECTRONICS
SD300
POWER CONNECTIONS
51
Power Terminals

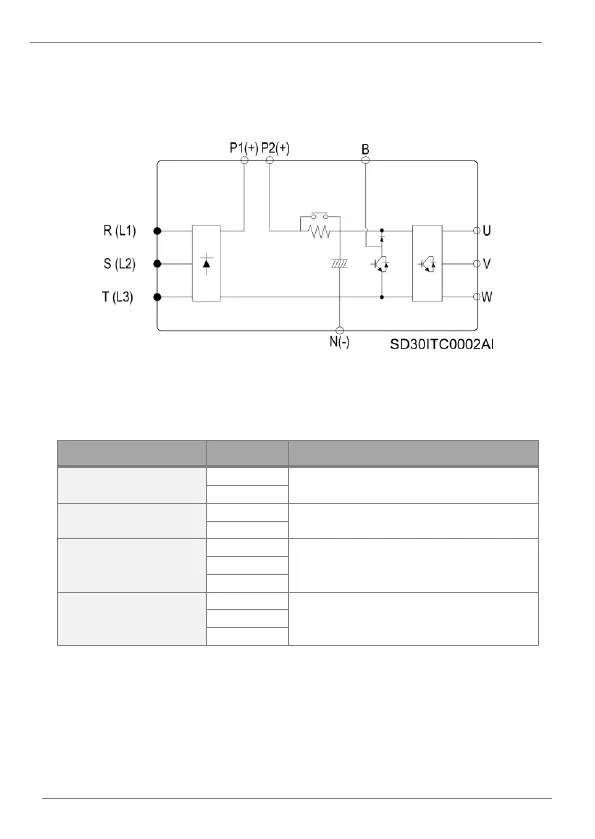

The available power terminals are shown in the figure below. For the power
connection, check section “Recommended Cable”.
Location of terminals in the control board
SIGNAL
DESCRIPTION
DC REACTOR
P1(+)
Connection terminal for DC reactor
Harmonic mitigation
P2(+)
DYNAMIC BRAKE
N(-)
DC voltage negative terminal
Integrated dynamic brake unit
B
POWER SUPPLY
R(L1)
AC Line Voltage input
(3-phase, AC 200 ~ 230V)
(3-phase, AC 380 ~ 480V)
S(L2)
T(L3)
MOTOR OUTPUT
U
Motor connection terminals
(3-phase, AC 200 ~ 230V)
(3-phase, AC 380 ~ 480V)
V
W
