POWER ELECTRONICS
DIMENSIONS
35
IP66 Drives Dimensions
Frame 1I Dimensions
INPUT VOLTAGE
PHASES
EQUIPMENT
200~240[V]
3
SD300326, SD300526
380~480[V]
3
SD300146F, SD300246F
DIMENSIONS [mm/inch]
WEIGHT
(kg/lb)
W1
W2
H1
H2
H3
D1
D2
A
Ø
T1
T2
180
(7.1”)
170
(6.7”)
257
(10”)
245
(9.6”)
8.2
(0.3”)
174
(6.9”)
188
(7.4”)
4.5
(0.2”)
4.5
(0.2”)
22.3
(0.9”)
-
3.7 (8.2lb)

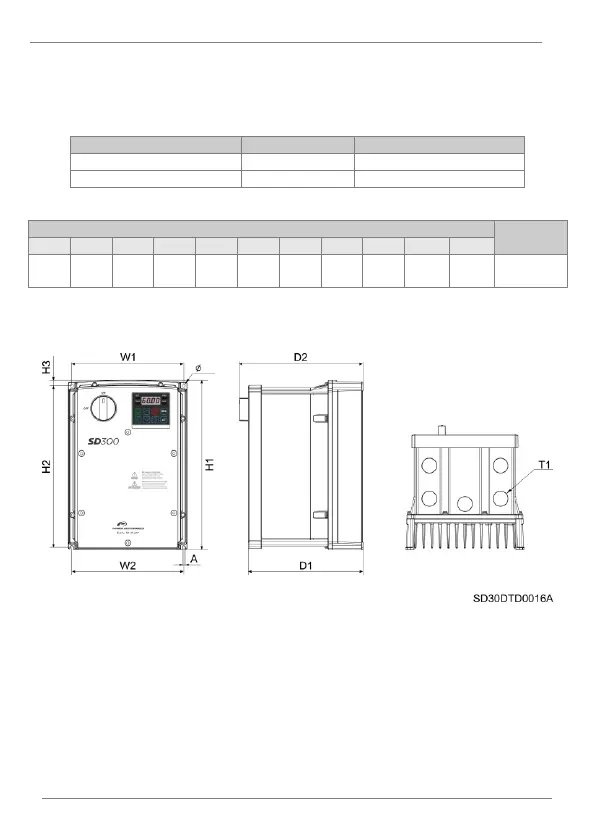

Frame 1I dimensions
