DIMENSIONS
Frame 6 Dimensions
INPUT VOLTAGE
PHASES
EQUIPMENT
200~240[V]
2
SD306922
380~480[V]
3
SD304442F, SD305842F
DIMENSIONS [mm/inch]
WEIGHT
(kg/lb)
W1
W2
H1
H2
H3
D1
A
B
Ø
220
(8.7”)
193.8
(7.6”)
350
(13.8’’)
331
(13”)
13
(0.5”)
187
(7.4”)
6 (0.2”)
6 (0.2”)
-
7.5
(15.4lb)

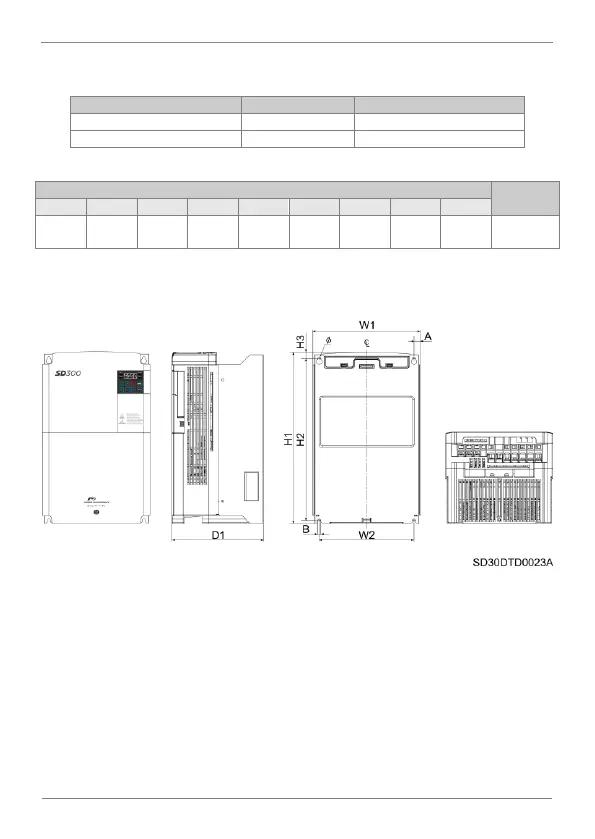

Frame 6 dimensions
