10. MAINTENANCE

SD300 drives consist of advanced semiconductor devices. Temperature,

humidity, vibration and deteriorated components can reduce their efficiency.

To avoid any possible irregularities, we recommend making periodic

inspections.

Cooling

It is possible to replace the cooling fan without dismounting the whole

equipment. To do this, unscrew the screws and disconnect the connector.

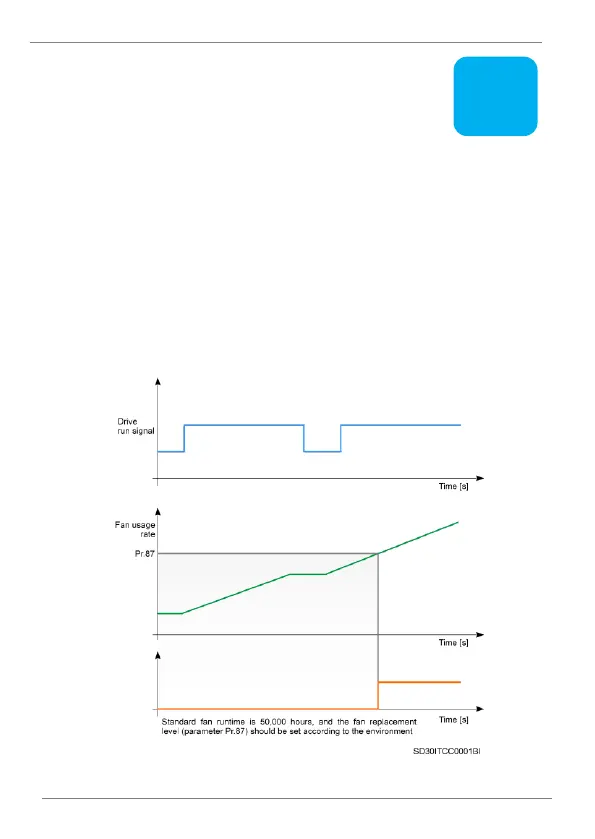

The following image shows the standard fan usage rate. Replacement level

can be set in parameter Pr.87.

Fan usage rate
