SD300
POWER ELECTRONICS
38
DIMENSIONS
Frame 4I Dimensions
INPUT VOLTAGE
PHASES
EQUIPMENT
200~240[V]
3
SD304626
380~480[V]
3
SD302446F, SD303046F
DIMENSIONS [mm/inch]
WEIGHT
(kg/lb)
W1
W2
H1
H2
H3
D1
D2
A
Ø
T1
T2
260
(10”)
229
(9”)
400
(16”)
377
(15”)
15
(0.6”)
246
(9.7”)
260
(10”)
6
(0.2”)
-
22.3
(0.9”)
34.9
(1.4”)
9.6 (21lb)

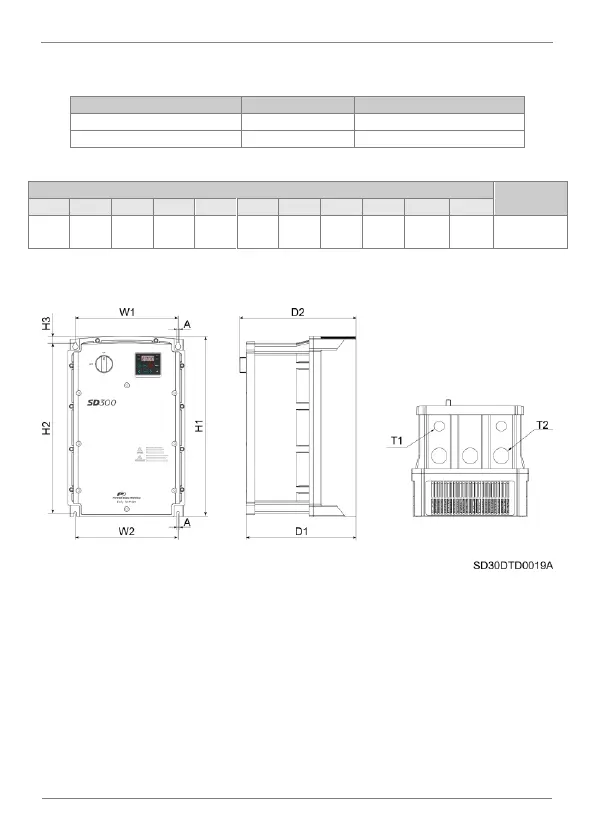

Frame 4I dimensions
