POWER ELECTRONICS
USE OF THE DISPLAY
93

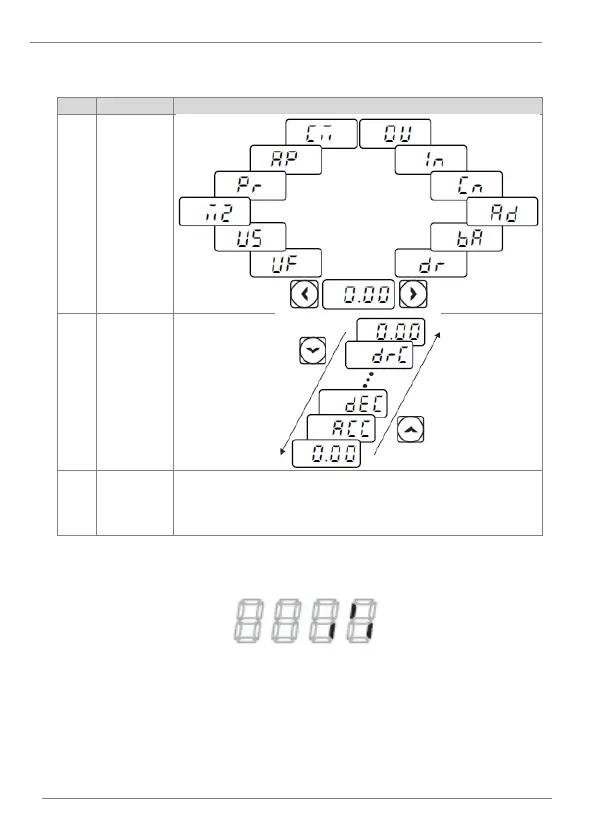

To learn how to switch between groups and parameters, follow the next
examples:
Step
Instruction
Keypad display
1
Move to the
desired group
using the
[◀] and [▶]
keys.
2
Move up and
down through
the
parameters
using the [▲]
and [▼]
keys.
3
Press the
[ENT] key to
save the
changes.
Binary numbers are shown in the integrated display as segment lines. “1” is
displayed in the top part of the display and “0” in the bottom part. For example,
“010” is represented as:
