AFV-P Series High Performance Programmable AC Power Supply
93

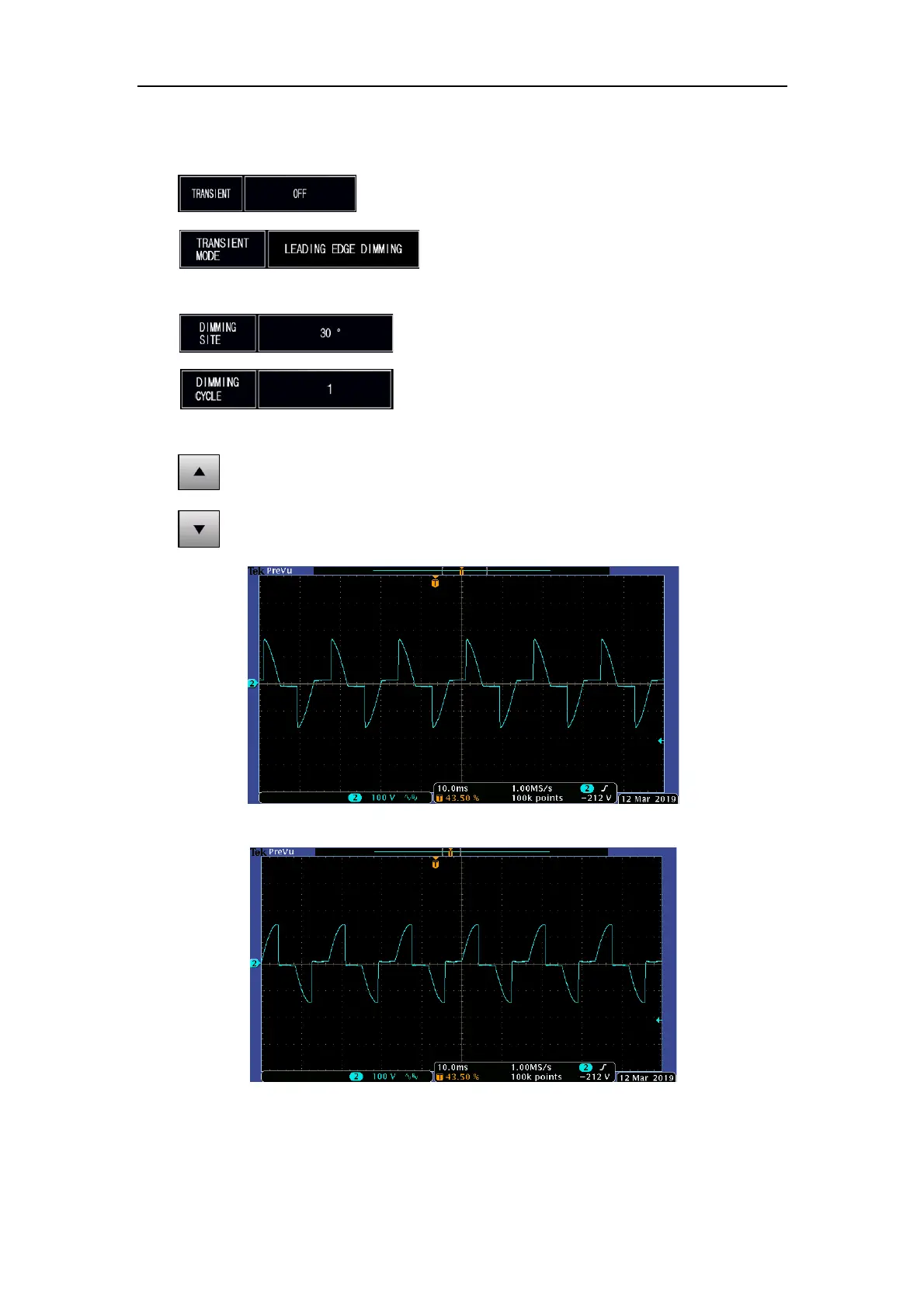

The description for the items at the TRANSIENT page are given as follows,
1) ：Press to enable/disable the TRANSIENT function.
2) ：Press to select LEADING EDGE DIMMING or
TRAILING EDGE DIMMING.
3) ：Press to set dimming angle from 0 to 180.
4) ：Press to set the dimming cycle, with options from
1 to 9999.
5) ：Press to move to the previous page of the TRANSIENT page.
6) ：Press to move to the next page of TRANSIENT page.
Figure 5.3 Waveform of LEADING EDGE DIMMING
Figure5.4 Waveform of TRAILING EDGE DIMMING
