AFV-P Series High Performance Programmable AC Power Supply
2

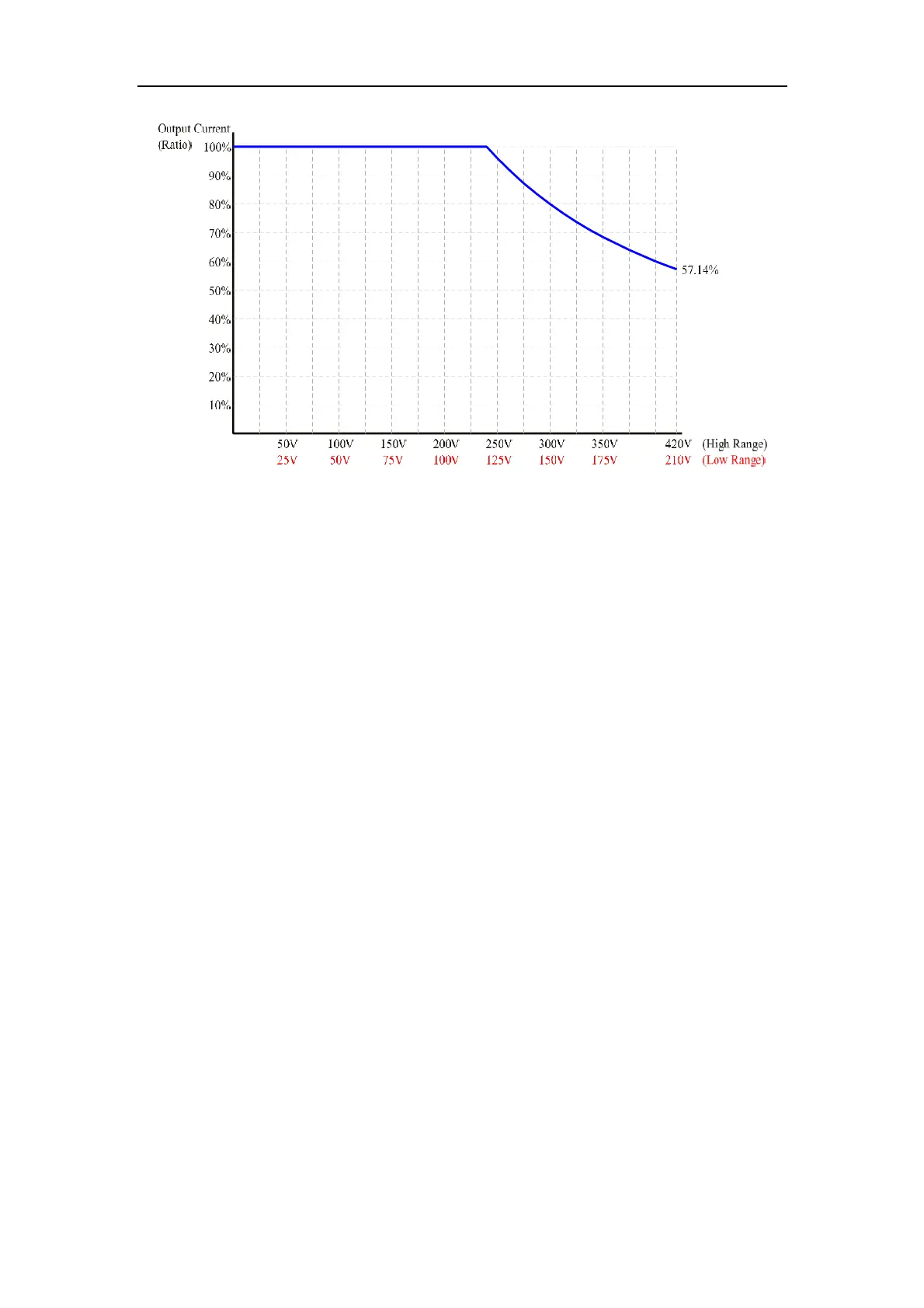

Figure 1.2 V/I curve for the DC output of the product
1.2 Key Features
A. Configuration
1. Local operation via the touch screen and the rotary knob on the front panel.
2. Remote control via RS232, RS485, Ethernet, USB or GPIB.
3. Protection for OVP, LVP, OCP, OPP, OTP, RCP, Fan Fail and AMP Fail.
4. Temperature-controlled fan speed.
B. Input / Output
1. Selective output voltage range with full scale 310V/Auto.
2. Universal input voltage range 98~132V
AC
/196~264V
AC
.
3. Wide output voltage from 0 to 310V
AC
& output frequency from 15 to 1000Hz.
4. Measurement readings of V, I, P, VA, VAR, F, I
pk
, CF and PF.
5. Output of Synchronized signal.
