AFV-P Series High Performance Programmable AC Power Supply
12
2.4 Output Connection
The output terminals are located on the rear panel of the product (see Figure 2.3).
The terminals “N” and “L” of the output terminals are connected to the load. To
match the safety requirements, the safety cover for the output terminals must be
fastened. The wires to the load must be sufficiently large gauges, so they will not
overheat while carrying the output current.

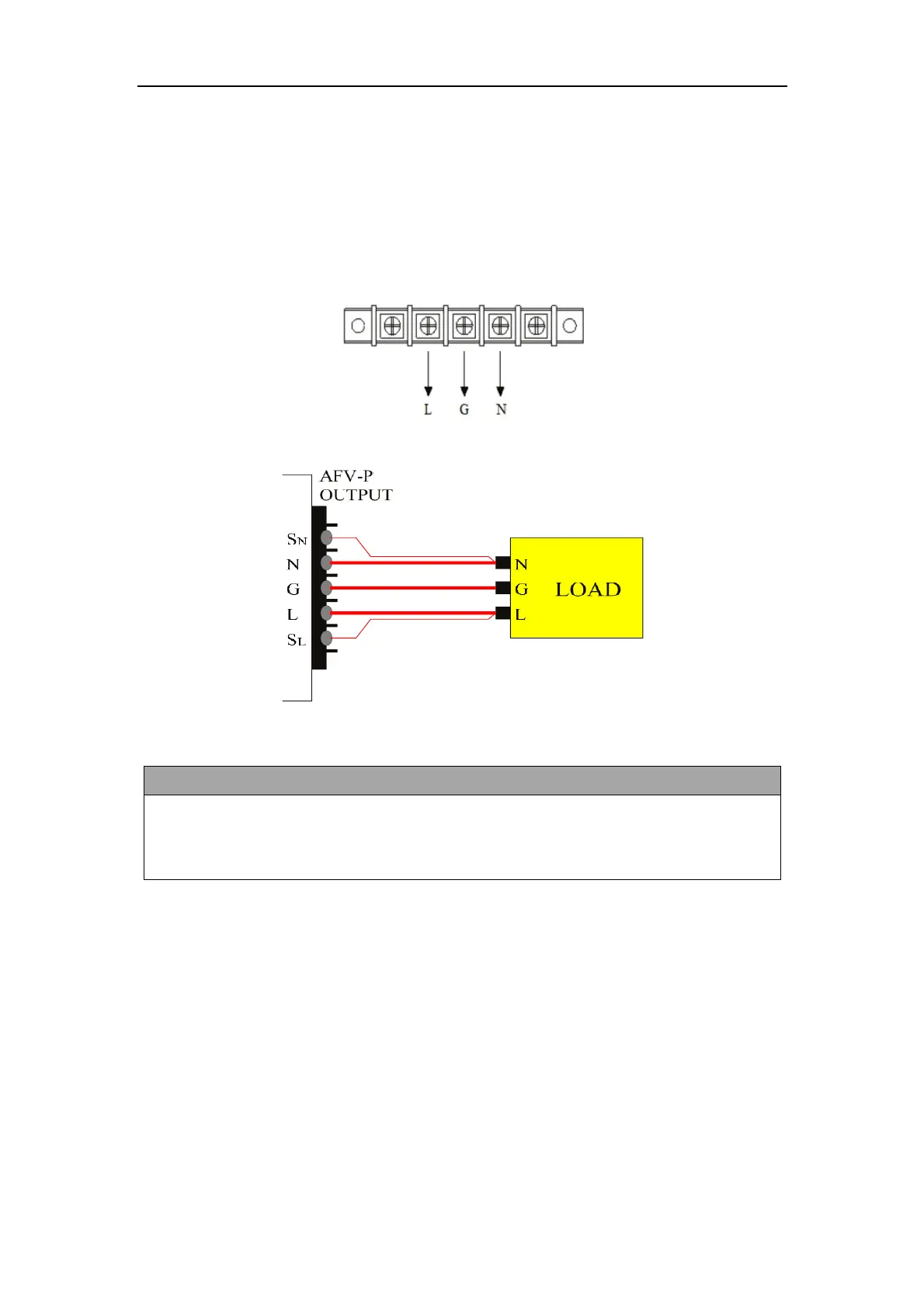

Figure 2.3 Output terminals
Figure 2.4 Output terminals to the load
When output voltage contains DC composition, Terminal “L” of the output ter-
minals indicates the “+” terminal; terminal “N” of the output terminals indi-
cates the “-” terminal.
